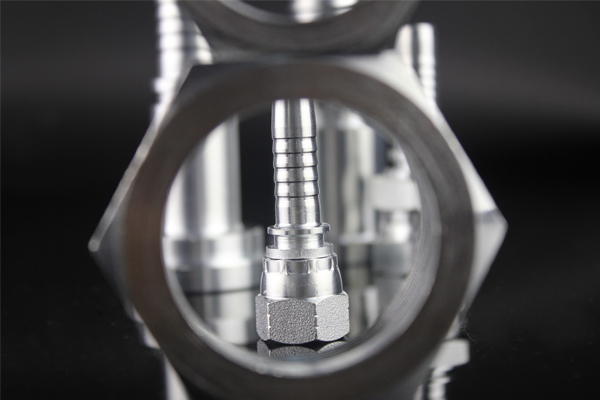

30212 fittings are metric female flat seal for spiral hoses and steel wire braided hoses such as R1AT, R2AT, 4SH, 4SP, etc. Fittings are coated with zinc plated or chrome plated before package. YH is providing good quality fittings, reasonable prices and better services. We can design fittings as customers’ requirements.

Details

---

Part no.: 30212(Metric Female Flat Seal For Spiral Hose)

Thread sizes: M22, M30, M36, M39, M42, M45, M52, M64, or other sizes required

Logo: YH or any other customer required logo

Material: 45 carbon steel, mild steel, stainless steel, etc.

OEM service: available for samples or drawings provided

Technical Data Table

---

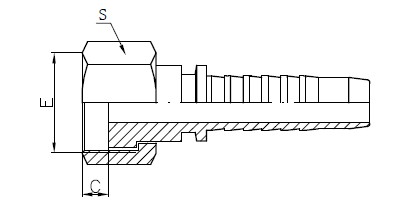

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S
30212-22-08	M22X1.5	12	08	10	27
30212-30-12	M30X1.5	20	12	11.5	36
30112-36-14	M36X2	22	14	13	41
30112-36-16	M36X2	25	16	13	41
30212-39-16	M39X2	25	16	13	46
30212-42-16	M42X2	25	16	15	50
30212-45-20	M45X2	32	20	15	55
30212-52-20	M52X2	32	20	17	60
30212-52-24	M52X2	38	24	17	60
30212-64-32	M64X2	50	32	23	75

1) FERRULE

FERRULE for SAE100R1AT/EN 853 1SN HOSE

FERRULE for SAE100R1A EN 853 1ST HOSE

FERRULE for SAE100R2AT/DIN20022 2SN HOSE

FERRULE for SAE100R2A/EN853 2SN HOSE

FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC

FERRULE for 4SP, 4SH/10-16, R12/06-16 HOSE

FERRULE for 4SH, R12/32 HOSE

2) SWAGED METRIC FITTINGS

Metric Flat Seal Fittings Metric Multiseal Fittings

Metric 60°Cone Seal Fittings Metric 74°Cone Seal Fittings

Metric 24°Cone O-RING Seal L..T. Fittings Metric 24°Cone O-RING Seal H.T. Fittings

Metric Standpipe Straight Fittings JIS Metric 60°Cone Seal Fittings

3) SWAGED BRITISH FITTINGS

BSP O-RING Seal Fittings BSP Flat Seal Fittings

BSP Multiseal Fittings BSP 60°Cone Seal Fittings

BSPT Fittings JIS BSP 60°Cone Seal Fittings

4) SWAGED AMERICAN FITTINGS

SAE O-RING Seal Fittings ORFS Flat Seal Fittings

NPSM 60°Cone Seal Fittings JIC 74°Cone Seal Fittings

NPT Fittings SAE Flange L.T. Fittings SAE Flange H.T. Fittings

5) STAPLELOK FITTINGS

BANJO DOUBLE CONNECTION INTERLOCK HOSE FITTINGS

6) METRIC ADAPTERS

Metric Thread O-RING Face Seal Adapters

Metric Thread Bite Type Tube Adapters

Metric Thread 74°Cone Flared Tube Adapters

JIS Metric Thread 60°Cone Adapters

7) BRITISH ADAPTERS

BSP Thread 60°Cone Adapters

JIS BSP Thread 60°Cone Adapters

BSPT Thread Adapters

8) AMERICAN ADAPTERS

ORFS ADAPTERS JIC 74°Cone Flared Tube Adapters

NPT Thread Adapters

9) OTHER ADAPTERS

---
