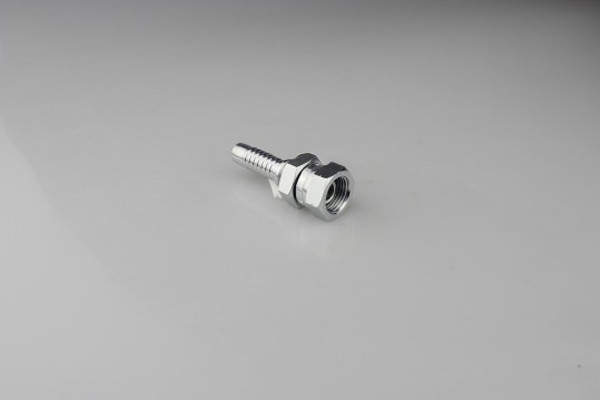

Factory Manufacturer Female Thread Carton Steel Hydraulic Hose Fittings 22611

22611 instead of BSP female 60 degrees cone are for one steel wire braided hydraulic hoses to make hose assemblies after crimped with related size of ferrules. 22611 series fittings are produced in YH factory largely because of its good selling. Hydraulic fittings are manufactured to Winner as well as Eaton standard.

Details

Quick Details
Type:Fittings
Model Number:22611
Brand Name:YH
Color:White
Material:Carbon Steel
Application:Machinery
Usage:Kinds Hydraulic Hose
Certificate:ISO9001:2008
Standard:BSP
Pressure:31.5Mpa
Product name:Carbon Steel Hydraulic fittings
Name:hydraulic hose fittings
Structure:nipple

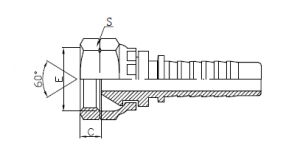

Technical Data Table

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺寸 DIMENSIONS
代号 PART NO.	螺纹E THREAD E	公称内径DN	标号 DASH	C	S
22611-04-04	G1/4"X19	6	04	5.5	19
22611-06-06	G3/8"X19	10	06	6.5	22
22611-08-08	G1/2"X14	12	08	8	27
22611-10-10	G5/8"X14	16	10	10.5	30
22611-12-12	G3/4"X14	20	12	11.5	32
22611-16-16	G1"X11	25	16	11.5	41
22611-20-20	G1.1/4"X11	32	20	12	50
22611-24-24	G1.1/2"X11	40	24	13	55
22611-32-32	G2"X11	50	32	16	70

YH Hydraulic is a specialized manufacturer of hydraulic spare parts. YH is a reliable supplier of hydraulic hose fittings, adapter fittings, hose ferrules, hydraulic hoses, crimping machines, bolts, nuts, etc. You can visit pictures below to get a grasp understanding of our factory. Procedures are showed for your reference. We are offering good quality products with much more reasonable prices. We have kept a big stock for many items to prompt the delivery time and meet urgent orders’ requirements. We welcome you coming to us with your suggestions, comments, or inquiries. We have confidence in establishing business relationship with you and keeping it forever.
