GB FEMALE 74 degree CONE Metric hose fitting reusable hydraulic fittings

20711 fittings are GB metric female 74°cone seat types. YH manufacture complete sizes of 20711 fittings for 1/8’’ to 1.1/4’’ daily. But we can also provide OEM service for other sizes if required. Our fittings are finished with zinc plate treatment. Popular coatings are yellow zinc plating, white zinc plating, and chrome plating.

Details

---

Part no.: 20711(GB Metric Female 74°Cone Seat)

Material: Iron, carbon steel, stainless steel, or other required material

Standard(Specification): Winner production standard; as per drawings or samples.

Surface treatment: zinc plated, nickel plated; chrome plated; hot-dip galvanized; painting

Our features: Corrosion resistance, good color and luster, high durability, high precision, high performance.

Technical Data Table

---

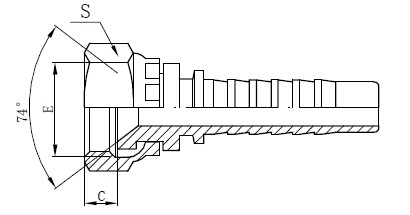

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸 DIMENSIONS
		公称内径 DN	标 号DASH	C	S
20711-12-02	M12X1.5	4	02	8	17
20711-12-04	M12X1.5	6	04	8	17
20711-14-04	M14X1.5	6	04	9	19
20711-14-05	M14X1.5	8	05	9	19
20711-14-06	M14X1.5	10	06	9	19
20711-16-05	M16X1.5	8	05	9.5	22
20711-16-06	M16X1.5	10	06	9.5	22
20711-18-06	M18X1.5	10	06	9.5	24
20711-20-06	M20X1.5	10	06	10	27
20711-20-08	M22X1.5	12	08	10	27
20711-22-08	M22X1.5	12	08	9.5	27
20711-27-10	M27X1.5	16	10	10.5	32
20711-30-12	M30X1.5	20	12	12.5	36
20711-33-14	M33X2	22	14	13.5	41
20711-33-16	M33X2	25	16	13.5	41
20711-42-20	M42X2	32	20	15.5	50

1) FERRULE

FERRULE for SAE100R1AT/EN 853 1SN HOSE

FERRULE for SAE100R1A EN 853 1ST HOSE

FERRULE for SAE100R2AT/DIN20022 2SN HOSE

FERRULE for SAE100R2A/EN853 2SN HOSE

FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC

FERRULE for 4SP, 4SH/10-16, R12/06-16 HOSE

FERRULE for 4SH, R12/32 HOSE

2) SWAGED METRIC FITTINGS

Metric Flat Seal Fittings Metric Multiseal Fittings

Metric 60°Cone Seal Fittings Metric 74°Cone Seal Fittings

Metric 24°Cone O-RING Seal L..T. Fittings Metric 24°Cone O-RING Seal H.T. Fittings

Metric Standpipe Straight Fittings JIS Metric 60°Cone Seal Fittings

3) SWAGED BRITISH FITTINGS

BSP O-RING Seal Fittings BSP Flat Seal Fittings

BSP Multiseal Fittings BSP 60°Cone Seal Fittings

BSPT Fittings JIS BSP 60°Cone Seal Fittings

4) SWAGED AMERICAN FITTINGS

SAE O-RING Seal Fittings ORFS Flat Seal Fittings

NPSM 60°Cone Seal Fittings JIC 74°Cone Seal Fittings

NPT Fittings SAE Flange L.T. Fittings SAE Flange H.T. Fittings

5) STAPLELOK FITTINGS

BANJO DOUBLE CONNECTION INTERLOCK HOSE FITTINGS

6) METRIC ADAPTERS

Metric Thread O-RING Face Seal Adapters

Metric Thread Bite Type Tube Adapters

Metric Thread 74°Cone Flared Tube Adapters

JIS Metric Thread 60°Cone Adapters

7) BRITISH ADAPTERS

BSP Thread 60°Cone Adapters

JIS BSP Thread 60°Cone Adapters

BSPT Thread Adapters

8) AMERICAN ADAPTERS

ORFS ADAPTERS JIC 74°Cone Flared Tube Adapters

NPT Thread Adapters

Quick Details

---

Material: Other
Technics: Other
Type: Other
Place of Origin: Zhejiang, China (Mainland)
Model Number: 20711-14-04T reusable hydraulic fittings
Brand Name: YH or OEM reusable hydraulic fittings
Connection: Female
Shape: Other
Head Code: Other
Product Name: reusable hydraulic fittings
THREAD E: M14X1.5
Connection method:: GB METRIC FEMALE 74° CONE SEAT
Colour:: gold

---
