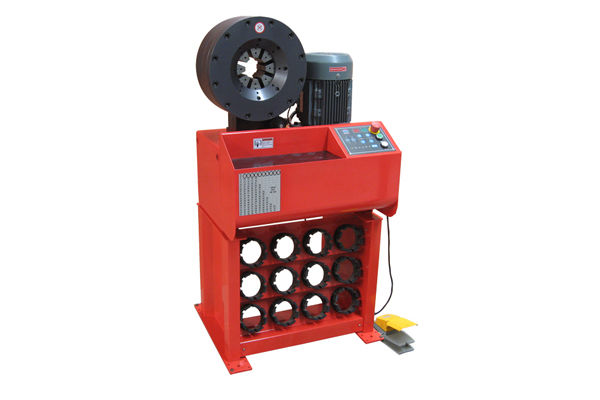

Hydraulic-Hose-Swager

Details


Part no.: YHHC-92C
The operating system more advanced, repeat precision is more accurate
Equipped with protection adapter which protect dies against the failure installation
6 functions, can be quickly selected
Suitable for 4 inch industrial hose
Brand: YH(Customer brand is available)
Stock: Available

Technical Data Table

Crimper range1/8’’-2.1/2’’  4SP/--4’’
Standard voltage & motor380V/4KW
Opening without diesΦ160mm
Opening≥38mm
Optional voltage & motor220V/2.2KW
No. Of standard die set16 sets
Systematic pressure30MPa
Weight269KGS
Volume(L*W*H)720mm* 530mm* 820mm
