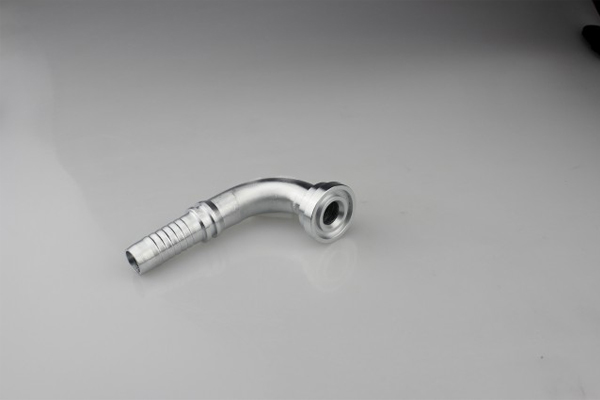

SAE-Flange-Interlock-Fittings

Details

Material:Carbon Steel, Carbon steel
Technics:Forged
Type:Coupling
Place of Origin:Zhejiang, China (Mainland)
Model Number:87993
Brand Name:YH
Connection:Flange
Shape:Equal
Head Code:Round
Color:Golden, silver
Surface treatment:Cr+3, Cr+6 Zinc plated, Zn-Ni plated
Pressure:3000 psi
Standard:iso 12151-3 ------j516
Products:45 degree sae flange fitting 3

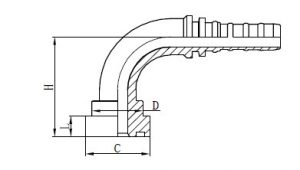

Technical Data Table

代号

PART NO.

法兰尺寸

FLANGE SIZE

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCDLH
87993-08-081/2"120831.823.914.340.5
87993-12-123/4"201241.331.714.371.5
87993-16-161"251647.63814.378.5
87993-20-201.1/4"32205443.614.390.5
87993-24-241.1/2"402463.550.814.3105
87993-32-322"503279.466.514.3124

Hose fitting

Main hydraulic fitting Products
1Hydraulic hose ferrule8Male and Female hydraulic fitting
2Eaton/Parker/American Standard hose fitting9One piece/two piece/three piece hose fitting
3Interlock hose fitting10Metric hose fitting: Flat/multiseal/74°Cone

/24°cone/standpipe fitting

4Reusable hose fitting11British hydraulic fitting: BSP/BSPP/BSPT/JIS BSP hose fitting
5Socket less hose fitting12American Hose Fittings: NPT/JIC 74°cone/ORFS/NPSM 60°

hose fittings

6Swivel hose fitting13Hydraulic Flange: Code 61/3000PSI SAE flange                                          Code 62/3000PSI SAE flange)
7Straight/45° elbow/90°elbow hose fitting14Plug, nut, nipple, tee and other hydraulic fittings

FAQ

1. How can you ensure the quality of your hydraulic fittings?
We will arrange hydraulic fitting sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to the confirmed sample. We will also send you our material report and quality report with delivery.
2. Do you offer OEM service and can you produce as our drawings?
Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawings
3. Can we design the packaging?
Yes, you can indicate the dimensions of the carton and pallet.
4. Do you offer free samples?
We can provide free hydraulic hose and fitting samples. After you place an order, we will give back the freight.
5. What's your delivery time?
Generally, we will arrange hydraulic fitting shipment with 25 days after receiving the deposit. If urgent, we can also meet your requirement.
