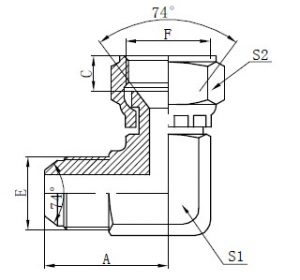

2J9 adapter fittings are 90 degrees JIC male 37 degrees cone to JIC female 37 degrees seat. Complete sizes dimensions are showed below on technical data sheet. Adapter fittings are manufactured as per drawings or customers’ special demands. Our production standard is Winner which is same as Eaton.

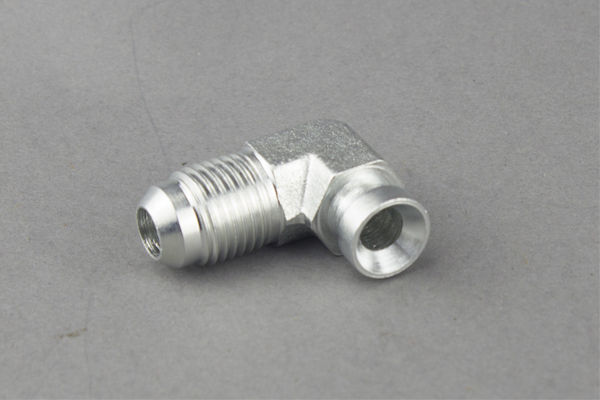

Part no.: 2J9(90°JIC Male 74°Cone to JIC Female 74°Seat)
Shapes and straights are manufactured as per material compositions desired by drawings or customers’ requirements.
YH fittings are produced in conformance with SEA, BS, AS, ANSI and DIN standards
Available for extrusions or forging
Usable with steel, brass and aluminum hydraulic tubing which is flare
Long term quality products with reasonable prices offered
Technical Data Table
l New valve design, it can bear impulsive force from high speed flow of fluid and pulsating pressure to provide higher performance.
l Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when , the coupling is dragged along the ground.
l The sleeve locking mechanism is designed to prevent dirt get into inside of mechanism, because the dirt may cause misoperation when connecting or disconnecting.
l Anti-blasting BFT sealing ring is supposed to avoid blasting or damage in a dangerous working condition.
l Quenching treated plug and sleeve and steel coupling can bear hydraulic and mechanical shock.
l Durable ball locking mechanism is the guarantee of reliable connection every time. Steel locking balls equally divide operation, meanwhile, provide alignment and rotating action to reduce torsion resistance of pipe and increase pipe service life. CAUTION: this kind of product cannot be used as a rotating coupling, because rotating under pressure will over-wear the coupling.
l Flat valve works when connecting or disconnecting. This means loss little fluid when disconnecting and little air sneak into coupling when reconnecting.
