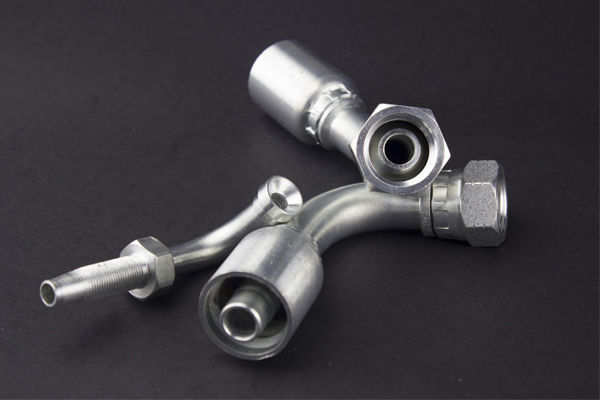

GB Metric Female 74° Cone Seat Hydraulic Hose Fitting

20291one piece integral fittings are 90 degrees GB metric female flat seat types which are 20291 fittings crimped with relevant ferrules. Sizes from 1/4’’ to 1’’ are popular produced in our factory and widely accepted by customers nationally and over the world. To be a reliable supplier, YH insist on provide not only best quality and competitive prices, but also after-sales service.

Details

Part no.: 20291one piece(90°GB Metric Female Flat Seat Integral Fitting)
Surface treatment: Hot-dip galvanized; chrome plated; painted
Stock: most items of the series are kept as stock products
Delivery time: Within 5 days for stock items
Currency: USD; RMB; Euro; other popular ones
Port: Ningbo port(nearest); Shanghai or Guangzhou acceptable

Technical Data Table

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺寸 DIMENSIONS
代号 PART NO.	螺纹E THREAD E	公称内径DN	标号 DASH	C	S1	S2	H
20291-14-04one piece	M14X1.5	6	04	8	17	17	28.1
20291-16-06one piece	M16X1.5	10	06	8	19	19	36
20291-18-06one piece	M18X1.5	10	06	8.5	22	19	36
20291-22-08one piece	M22X1.5	12	08	10	27	22	43
20291-27-10one piece	M27X1.5	16	10	10.5	32	27	63
20291-30-12one piece	M30X1.5	20	12	11	36	32	58.2
20291-36-16one piece	M36X2	25	16	13	41	38	68
20291-45-16one piece	M45X2	32	20	15	55	50	76

Shipping & Service

1. Orders will be dispatched in 30 days after payment, depending on quantities.
2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.
3. The tracking number will be offered you once the consignment is shipped.
4. Professional customer service to answer your questions or fix problems regarding your order.

Certificate

Our factory is strictly conducted by ISO9001: 2008
Quality assureance: Raw material incoming inspection, first article samples, PPAP, process inspection, final inspection.
