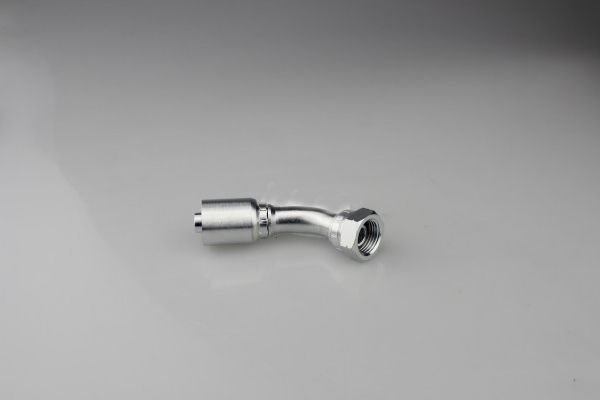

One Piece Crimp Fitting

30542one piece fittings are 45°elbow metric female 24°cone with o-ring for one, two or four braided hydraulic hoses which are heavy types. Different types of one piece fittings are involved in our production daily. Many thread types and sizes can be your choose. And please visit our website or download catalog for detailed data.

Details


Part no.: 30542one piece(45°Metric Female 24°Cone H.T. With O-ring Four-Wire Integral Fitting)
Types: 30542 fittings with related ferrules crimped
Sizes: sizes showed on technical data table are standard ones in YH Hydraulic
Samples: less than 3pcs is free of charge for checking the quality
Delivery time: Less than 7 days for stock products
Stock condition: a wide variety of fittings are kept in our stock

Product Catalog
1.Metric FittingsMetric Female 24°Cone O-Ring L.T.
45°Metric Female 24°Cone O-Ring L.T.
90°Metric Female 24°Cone O-Ring L.T.
Metric Male 24°Cone Seat L.T.
Metric Female 24°Cone O-Ring H.T.
45°Metric Female 24°Cone O-Ring H.T.
90°Metric Female 24°Cone O-Ring H.T.
Metric Male 24°Cone Seat H.T.
2.British FittingsBSP Female 60°Cone
45°BSP Female 60°Cone
90°BSP Female 60°Cone
BSP Male 60°Cone Seat
BSPT Male
3.American FittingsJIC Female 74°Cone Seat
45°JIC Female 74°Cone Seat
90°JIC Female 74°Cone Seat
JIC Male 74°Cone
ORFS Female Flat Seat
45°ORFS Female Flat Seat
90°ORFS Female Flat Seat
ORFS Male Flat Seat
NPT Male
4.Flange FittingsSAE Flange 3000 Psi
45°SAE Flange 3000 Psi
90°SAE Flange 3000 Psi
SAE Flange 6000 Psi
45°SAE Flange 6000 Psi
90°SAE Flange 6000 Psi
5.Banjo FittingsMetric Banjo
Metric Bolt
BSP Banjo
BSP Bolt

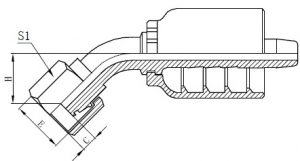

Technical Data Table


代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE管子外径

TUBE O.D.

尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS1H
30542-24-08one pieceM24X1.512081633027
30542-30-10one pieceM30X21610203.53631
30542-36-12one pieceM36X220122534134
30542-42-16one pieceM42X225163055042
30542-52-20one pieceM52X23220386.56043
30542-52-24one pieceM52X24024386.56045

FAQ


Q1.Are you a manufacturer or trading company?
We are a professional manufacturer specialized in pipe line industry .
Q2.How to order?
1.If you are interested in our products ,pls tell us which type and quantity you need .
2.We will quote for you according to the requirement .
3.When you confirm ,perform invoice will be send you.
4.We will produce ASAP when received your deposit .
5.Deliver the products when finish producing .
Q3. What is the payment?
We accept T/T, Western Union, L/C.
Q4.What’s the extra service?
1.Sample order is available.
2.OEM and ODM accepted ,quantity according to the goods.
3.Print text or logo on the surface of products.
Q5.What's your delivery time?
Generally, we will arrange shipment with 25~30 days after receiving the deposit. If urgent, we can also meet your requirement.
Q6. Is your price higher than other companies?
Ex-factory price, the same quality, we are much cheaper than other suppliers. We can control our quality and costs well. So our prices are very competitive.
And we dedicate to establishing long-term and friendly relationships with all the customers.
Q7.After sale service.
Follow status up time by time until the products arrival ,and try our best to solve any problems you mentioned.
