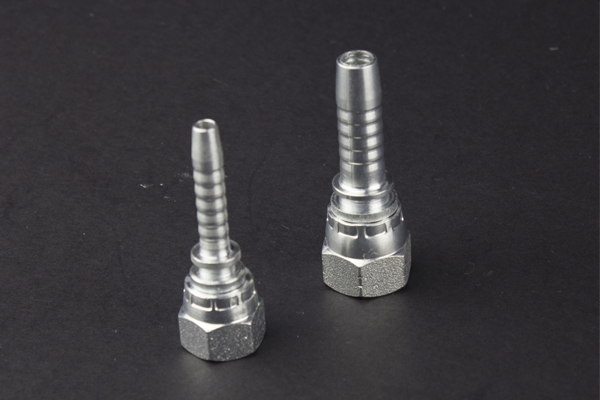

JIS METRIC FEMALE 60 CONE SEAL HOSE FITTINGS

28611 JIS female fittings are with 30 degrees seat and double hexagon. Complete process of fitting producing can be visited in YH Hydraulic from raw material cutting to finial packing. YH fittings are of smooth surface without burs and impurities. Fittings are checked four times by our inspectors.

Details

---

Part no.: 28611(JIS Metric Female 60 Degrees Seat With Double Hexagon)

Threads: JIS, JIC, Metric, BSP, BSPT, NPT(female and male)

Sizes: from 04 to 24 (for most hoses)

Type: Straight, 45 Degrees Elbow, 90 Degrees Elbow

Custom-orientated service: produce according to drawings or samples provided

Technical Data Table

---

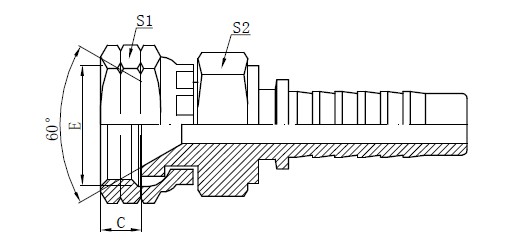

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S1	S2
28611-14-04	M14X1.5	6	04	12	19	19
28611-16-05	M16X1.5	8	05	9.5	22	22
28611-18-06	M18X1.5	10	06	11	24	24
28611-22-08	M22X1.5	12	08	14	27	27
28611-24-10	M24X1.5	16	10	13.5	32	32
28611-30-12	M30X1.5	22	12	20	36	36
28611-33-16	M33X1.5	25	16	20.5	41	41
28611-36-20	M36X1.5	32	20	20.5	46	46
28611-42-24	M42X1.5	40	24	18.5	55	55

1. Hydraulic Hose Fittings:

1). BSP male, female fitting, straight & elbow, nuts, ferrules

2). JIC male, female fitting, straight & elbow, nuts, ferrules

3). NPT male, female fitting, straight & elbow, nuts, ferrules

4). ORFS male, female fitting, straight & elbow, nuts, ferrules

5). SAE male, female fitting, straight & elbow, nuts, ferrules

6.) Metric male, female fitting, straight & elbow, nuts, ferrules

7). Reusable fittings

8). One-piece fittings

2. Hydraulic Adaptors:

1). BSP male, female adaptor, 3 ways tee 4 ways tee

2). JIC male, female adaptor, 3 ways tee 4 ways tee

3). NPT male, female adaptor, 3 ways tee 4 ways tee

4). ORFS male, female fitting, straight & elbow, nuts, ferrules

5). SAE male, female fitting, straight & elbow, nuts, ferrules

6.) Metric male, female fitting, straight & elbow, nuts, ferrules

3.Couplers and clamps:

European / American / Austraulia type camlock, pin-plug and clamps for large size hoses with NPT, BSP thread.

4.Stainless Steel (316SS / 304SS) & Brass & aluminum fittings:

NPT,JIC,BSP etc threaded male and female fittings & adaptors for low & high pressure

Quick Details

---

Type: Fittings
Model Number: 28611/28691
Brand Name: YH
Place of Origin: Zhejiang, China (Mainland)
Material: Carbon steel / Stainless steel / Brass
Treatment: Zinc Plated / ZnNi Plated / Black
Color: Silver / Yellow / Black / Grey
Certifivation: ISO 9001: 2008
Product: JIS METRIC FEMALE 60 CONE SE

---
