Metric Male 24 degree Cone Seat Light Type Hydraulic Hose Fittings

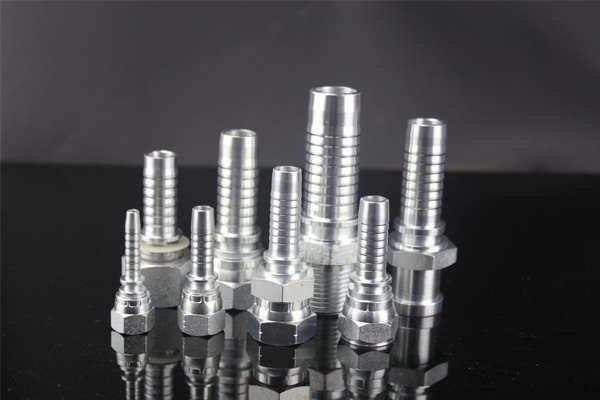

10411 fittings are metric male 24 degree cone seat light type DIN3853. 10411 fittings are manufactured from 1/4’’ to 1.1/2’’ popularly. 10411 fittings are finished with zinc plated that three types can be chosen commonly which are zinc plated, chrome plated, and nickel plated. Fittings from YH Hydraulic are of good quality that can be installed easies and used for a long life term.

Details

---

Part no.: 10411(Metric Male 24°Cone Seat L.T. DIN3853)

Colors: white; yellow; silver

Coating: white zinc plated, yellow zinc plated, chrome plated, nickel plated, painting

Samples service: less than 5pcs in stock is free of charge

Our advantage: smooth surface, good tolerance controlled, high quality material used, reasonable prices provided

Technical Data Table

---

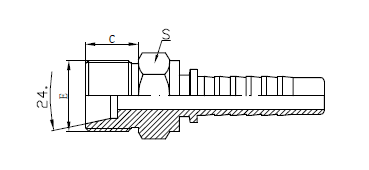

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		管子外径 TUBE.O.D	尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH		C	S
10411-12-04	M12x1.25	6	04	6	11	14
10411-14-04	M14X1.5	6	04	8	13	17
10411-16-05	M16x1.5	8	05	10	13.5	17
10411-18-06	M18x1.5	10	06	12	13.5	19
10411-22-08	M22x1.5	12	08	15	13.5	24
10411-26-10	M26x1.5	16	10	18	14	27
10411-27-10	M27x1.5	16	10	18	14	27
10411-30-12	M30X2	20	12	22	18	32
10411-36-16	M36X2	25	16	28	20	41
10411-45-20	M45X2	32	20	35	20	46
10411-52-24	M52X2	40	24	42	19	55

Quick Details

Delivery Detail: 1-2weeks

Package Detail: Nylon plastic+corrugated carton +Multiple plywood case

Custom-orientated Service: produce according to your drawings or sample, offer custom-design

Our advantage:

1. High quality 2. Rich inventory  3. Prompt delivery 4. Reasonable price

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	DIMENSIONS
		DN	DASH		C	S1
P10411-12-04	M12x1.5	6	04	6	10.7	14
-12-04A	M12X1.25	6	04	6	10.7	14
-14-04	M14x1.5	6	04	8	13	17
-14-05	M14x1.5	8	05	8	13	17
-16-04	M16x1.5	6	04	10	13.5	17
-16-05	M16x1.5	8	05	10	13.5	17
-16-06	M16x1.5	10	06	10	13.5	17
-18-05	M18X1.5	8	05	12	13.5	19
-18-06	M18X1.5	10	06	12	13.5	19
-20-04	M20X1.5	6	04	14	13.5	22
-20-08	M20X1.5	12	08	14	13.5	22
-22-06	M22X1.5	10	06	15	13.5	24
-22-08	M22X1.5	12	08	15	13.5	24
-24-08	M24X1.5	12	08	18	13.5	27
-26-08	M26X1.5	12	08	18	14	27
-26-10	M26X1.5	16	10	18	14	27
-27-08	M27X1.5	12	08	18	14	30
-27-10	M27X1.5	16	10	18	14	30
-27-12	M27X1.5	20	12	18	14	30
-30-08	M30X2	12	08	22	18	32
-30-10	M30X2	16	10	22	18	32
-30-12	M30X2	20	12	22	18	32
-36-16	M36X2	25	16	28	18	38
-45-20	M45X2	32	20	35	19	46
-52-24	M52X2	40	24	42	19	55

Quick Details

---

Type: Fittings
Model Number: 10411
Brand Name:YH
Place of Origin: Zhejiang, China (Mainland)
Name: Metric Male 24 degree Cone Seat Light Type Hydraulic Hose Fittings
Material: Carbon Steel, stainless steel, brass
Color: Silver/Yellow
Fitting Material Type: Zinc Plated Carbon Steel, Chrome Plated Brass etc
Kind: Pipe Fitting Lateral Tee
Suitable Medium: Water/Oil/Gas
Thread: cold galvanized fitting
Deivery time: 30-45days of butt weld fitting
Item no: 10411
Elbow: 0 Degree

---
