24 degree cone Metric thread standard DKOL DKOS hydraulic fitting

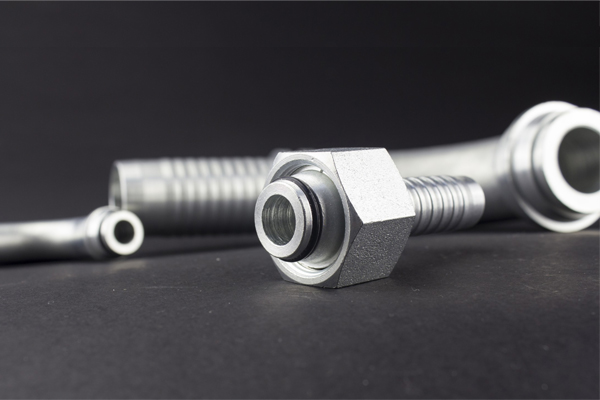

Part no. 30512 is metric female 24 degrees cone heavy type with o-ring non-crimped fittings for spiral hoses. The related fittings are 20512 series which are crimped types but their application is same. 30512 fittings are produced with smooth surface finish and required coating. Popular coatings are acceptable like zinc-plated and chrome plated.

Details

Part no.: 30512(Metric female 24 degrees cone heavy type with o-ring for spiral hose; non-crimp type)

Types: Straight; 45 degrees elbow; 90 degrees elbow

Related products: 03310 ferrules are suitable for 30512 fittings; One or two steel wire braided hydraulic hoses

Stock: many sizes of 30512 series are kept as stock products

Samples: less than 5pcs is free of charge; re-produced items can be used as samples but it needs production time

Custom-orientated service: it is available if samples, drawings, or requirements are provided

Technical Data Table

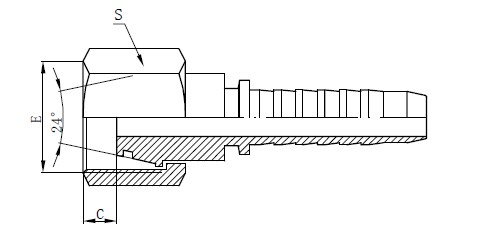

Drawing

代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE管子外径

TUBE.O.D

尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS
30512-24-08M24X1.5120816330
30512-30-10M30X21610203.536
30512-30-12M30X22012203.536
30512-36-16M36X2251625341
30512-42-16M42X2251630550
30512-52-20M52X23220386.560
30512-52-24M52X24024386.560

Quick Details

Material: Carbon Steel
Technics: machining
Type: hydraulic fitting
Place of Origin: Zhejiang, China (Mainland)
Model Number: DKOL ORFS CEL ETC
Brand Name: YH
Connection: Female
Shape: Equal
Head Code:Hexagon
Product name:: 24 degree cone Metric thread standard DKOL DKOS hydraulic fitting
Size:: 1/4"-1 1/2"
Connection:: female
Standard:: Metric BSP BSPT JIC NPT DIN
Thread:: Metric M14*1.5-M64*2
Cone seat:: 24 37 55 60 74 90 degree
Shape:: straight and elbow
Surface treatment:: Cr6free zinc
Application:: high pressure rubber hose and pipe
Country Origin:: Made in China

Product Description

1. Material: Q235,C45,SUS304,SUS316,H58-3,H59,etc...

2. Size: 1/4"-1 1/2"

3. Standard: DIN 20022/20023,GB10544/GB3836,GB/T 9065.5-2010

4. Certification: ISO9001

Product Name
24 degree cone Metric thread standard DKOL DKOS hydraulic fitting
Material
carbon steel,stainless steel,brass,aluminium,etc...
Treatment
Cr6free Zinc, Nickel, chrome,painting,etc...
Thread
Metric,BSP,JIC,DIN,JIS,etc...
Connection
female and male
Process
CNC machining based on forged part or bar raw material
Code NO.
DKOL,DKOS,ORFS,CEL,etc...
Used
precision parts, machinery accessories, truck and auto parts, industrial parts,mining accessories, off-shore appliances, agricultral facilities, and construction material, etc...
