BSP-Double-Hex-Coupling

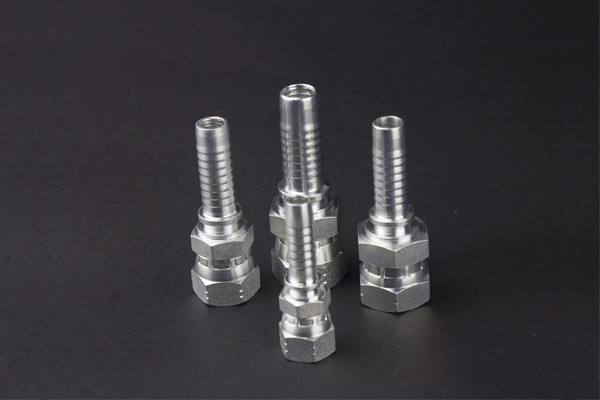

22612D is with thread type of BSP female 60 degrees cone with double hexagon for spiral hose. Sizes from 1/4’’ to 2’’ are produced in YH Hydraulic frequently. Hydraulic fittings are used in hose assemblies to transport oil or water so that’s why high precision and high pressure resistant are required to keep from leaking. And YH can ensure good quality produced.

Details


Material:Carbon Steel
Technics:Forged
Type:Coupling, 20 year experience Chrome plate Gasoline ferrule fittings
Place of Origin:Zhejiang, China (Mainland)
Model Number:22611D BSP FEMALE 60 DEGREE CONE DOUBLE HEXAGON fittings
Brand Name:22611D BSP FEMALE 60 DEGREE CONE DOUBLE HEXAGON fittings
Connection:Female
Shape:Equal, Male Connector, Female Connector, Hex union, elbows, tees
Head Code:round, Hexagon, Round & Forged
connection:Female
Materials:carbon steel, stainless steel
Size:DN 6MM to 50MM
Standard:Metric
Color:Silver
Surface treatment:Zinc Plated

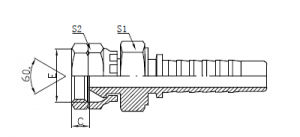

Technical Data Table


代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS1S2
22612D-04-04G1/4"X196045.51919
22612D-06-06G3/8"X1910066.52222
22612D-08-08G1/2"X14120882727
22612D-12-12G3/4"X14201211.53232
22612D-16-16G1"X11251611.54141
22612D-20-20G1.1/4"X113220125050
22612D-24-24G1.1/2"X114024135555
22612D-32-32G2"X115032167070

FAQ


Q1. Who we are?
A professional manufacturer and seller of hydraulic fittings, ferrules, hoses, machines and hose assemblies
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A :We can provide free samples and you should pay the freight. After you place an order, we will give back the freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q5: Do you offer OEM service and can you product as our drawings?
A:Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawings.
Q6:Do you accept our design on boxes?
A:Yes. We accept custom design on boxes.
Q7: Is your price higher than other companies?
A:Ex-factory price, the same quality, we are much cheaper than other suppliers. We can control our quality and costs well. So our prices are very competitive. And we dedicate to establishing long-term and friendly relationships with all the customers.
Q8. How do you control the quality?
A:We will arrange sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to the confirmed sample. We will also guarantee the accuracy of packaging and send you shipping sample.
