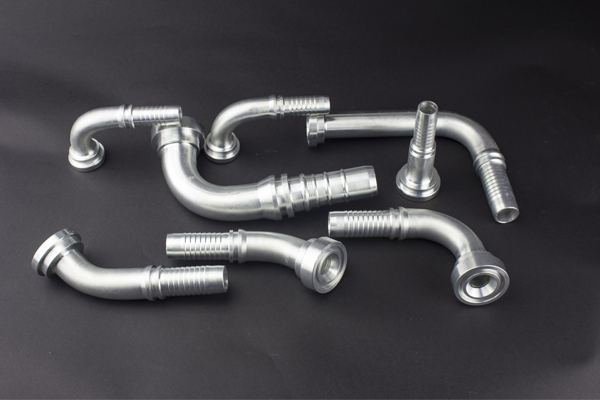

87613 fittings are SAE flange 6000PSI for interlock which are manufactured from 45 carbon steel. 87613 fittings are suitable for highest pressure demands hydraulic hoses. 87613 fittings can be chosen from 1/2’’ to 2’’ which are produced with CNC machines that can ensure the highest precision requirements.

Details

Quick Details
Material:Carbon Steel
Technics:machining connector
Type:Flange
Place of Origin:Zhejiang, China (Mainland)
Model Number:flange 87613
Brand Name:YH
Connection:Flange
Shape:Equal
Head Code:Hexagon
Product name:High pressure SAE steel hydraulic hose flange connector
Size:1/4"-1 1/2"
Connection:flange
Pressure:3000PSI 6000PSI
material:carbon steel
Cone seat:24 37 55 60 74 90 degree
Shape:straight and elbow flange conector
Surface treatment:Cr6free zinc
Application:high pressure rubber hose and pipe
Country Origin:Made in China

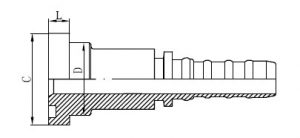

Technical Data Table

  代号

PART NO.

法兰尺寸

FLANGE SIZE

胶管

HOSE BORE

尺  寸

DIMENSIONS

公称内径DN标 号 DASHCDL
87613-08-081/2"120831.823.97.9
87613-12-123/4"201241.331.78.9
87613-16-161"251647.6389.6
87613-20-201.1/4"32205443.610.4
87613-24-241.1/2"402463.550.812.7
87613-32-322"503279.466.512.7
Product Name
High pressure SAE steel hydraulic hose flange connector
Material
carbon steel,stainless steel,brass,aluminium,etc...
Treatment
Cr6free Zinc, Nickel, chrome,painting,etc...
Thread
Metric,BSP,JIC,DIN,JIS,etc...
Connection
female and male
Process
CNC machining based on forged part or bar raw material
Code NO.
DKOL,DKOS,ORFS,CEL,etc...
Used
precision parts, machinery accessories, truck and auto parts, industrial parts,mining accessories, off-shore appliances, agricultral facilities, and construction material, etc...

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample free of charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
