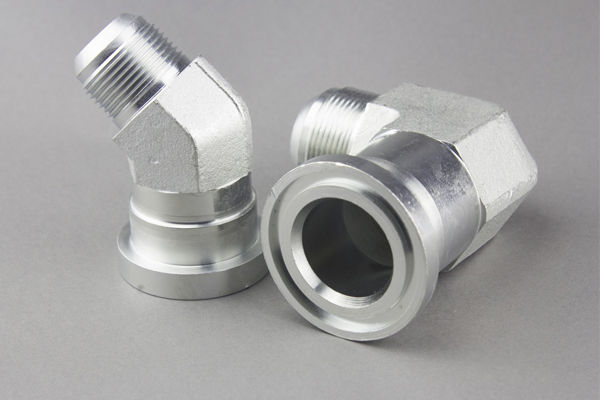

Hydraulic-Flange-Adapter

Details

Part no.: 1JFS(JIC male 74 degrees with s-series flange)
Products offered: complete items of adapter fittings; special dimensions and other standard products available under customers’ requirements
Samples: Less than 5pcs is free of charge according to stock condition
Thread types: JIC; metric; ORFS; BSP; BSPT; JIS; female; male
After-sales service: available

Product catalogue

1.Swaged Metric Fittings Mertic Flat Seal Fittings
Metric Multiseal Fittings
Metric 60°Cone Seal Fittings
Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T Fittings
Metric 24°Cone O-RING Seal H.T.Fittings
Metric Standpipe Straight Fittings
JIS Metric 60°Cone Seal Fitting
2. Swaged British Fittings BSP O-RING Seal Fittings
BSP Flat Seal Fittings
BSP Multiseal Fittings
BSP 60°Cone Seal Fittings
BSPT Fittings
JIS BSP 60°Cone Seal Fittings
3. Swaged American Fittings SAE O-RING Seal Fittings
ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings
JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittiings
SAE Flange H.T.Fittings
4. Metric Adapters Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
JIS Metric Thread 60°Cone Adapters
Metric Thread 74°Cone Flared Tube Adapters
5. British Adapters BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters
8. American Adapters
ORFS Adapters JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters

Technical Data Table

代号

PART NO.

螺纹法兰尺寸

FLANGE SIZE

尺寸 DIMENSIONS
THREAD E1d1A
1JFS-08U3/4"X161/2"7.931.716.7
1JFS-10-08U7/8"X141/2"7.931.719.5
1JFS-10-12U7/8"X143/4"8.941.322
1JFS-12U1.1/16"X123/4"8.941.322
1JFS-12-16U1.1/16"X121"8.941.322
1JFS-16U1.5/16"X121"9.647.623
1JFS-16-12U1.5/16"X123/4"9.647.623
1JFS-16-20U1.5/16"X121.1/4"9.647.623
1JFS-20U1.5/8"X121.1/4"10.45424.5
1JFS-20-16U1.5/8"X121"10.45424.5
1JFS-20-24U1.5/8"X121.1/2"10.45424.5
1JFS-24-20U1.7/8"X121.1/4"12.763.527.5
1JFS-24U1.7/8"X121.1/2"12.763.527.5

Our Service

a).Quality assurance and Favorable price
b).High efficiency
c).Inner packing: polybag, outer packing: carton and pallet
d).Fast delivery, after-sale service
e).Fast feedback: we promise to reply your inquiry within 24hours
f ).OEM accepted

Feature

Material
Carbon steel , stainless steel
Precision
High precision in size
MOQ
100pcs
Advantages
Competitive price, own factory, QC

FAQ

1.Q: What’s your delivery time?
A: The time of delivery is 25 days.
2.Q: What’s the shipping port?
A: We ship the goods via Ningbo, Shanghai and the other main ports in China.
3.Q: What’s your payment term?
A: L/C, T/T.
4.Q: What’s the location of your company?
A: Zhejiang Province, China. If you want to have a visit, you will be very welcomed.
5.Q: How about your quality?
A: You can try a small order and you will have your judgement.
6.Q: How about the samples?
A: We can send you samples with little and reasonable charge.
7.Q: Are you manufactory?
A: Yes, we are a specialized manufacture of hose connector,instrument fitting connector,transition joints and so on.
