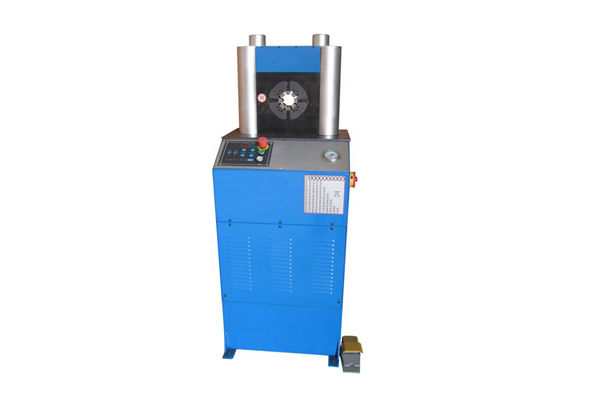

Super Hose Crimping Machine


Part no.: YHSTHC-81A
Ultra thin body, max opening
Operating system upgrade easy and intelligence
Suitable for crimping air condition pipe, flexible wire and special hose
Pre-fill design, crimp quickly and swaging force is big

Technical Data Table

Crimper range1/8’’-1.1/4’’ 4SP
Standard voltage & motor380V/4KW
Opening without diesΦ105mm
Optional voltage & motor220V/2.2KW
No. Of standard die set8 sets
Systematic pressure20MPa
Weight280 KGS

Product Description

1. for hose up to 2inch, can crimp at one time to get beautiful look;
2. hose after crimping do not have the problem of leaking, heads off, ellipticity.
3. this model can be used for large production line, it can crimp over 350 pieces per hour.
4. special dies can be offered as requested.
