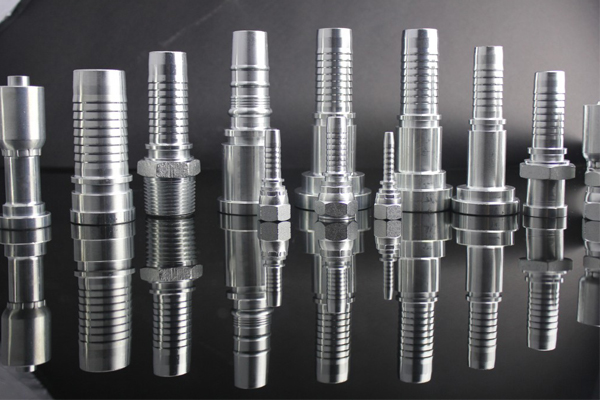

6mm hydraulic hose fitting insert nipple male nipple

18611 series are JIS metric male 60 degrees cone seat which are based on Komatsu standard. Komatsu is a Japanese indigenous proper noun which means small pine tree. 18611 series fittings are popularly manufactured in YH Hydraulic that can meet most requirements from customers. 18611 fittings are finished with smooth surface, standard tolerance, and high precision.

Details

Part no.: 18611(JIS metric male 60 degrees cone seat)

Related Products: 28611(female type); 28641(female 45 degrees elbow); 28691(female 90 degrees elbow)

28611 suitable hoses: 1SN(R1) hose; 2SN(R2) hose; R16 hose; R17 hose; R12/4SH/R13 hoses; Pressure wash hose

MOQ policy: 300 to 500 pcs each items for re-produced types.

Samples: Less than 5pcs is free for checking our quality level.

Technical Data Table

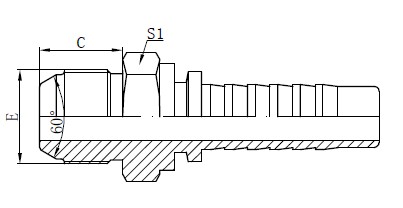

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺寸 DIMENSIONS
代号 PART NO.	螺纹E THREAD E	公称内径DN	标号 DASH	C	S1
18611-14-04	M14X1.5	6	04	17	17
18611-16-05	M16X1.5	8	05	18	19
18611-18-06	M18X1.5	10	06	18	22
18611-22-08	M22X1.5	12	08	20	24
18611-24-10	M24X1.5	16	10	21.5	27
18611-30-12	M30X1.5	22	12	26	32
18611-33-16	M33X1.5	25	16	30	36
18611-36-20	M36X1.5	32	20	33	46
18611-42-24	M42X1.5	40	24	36	50

6mm hydraulic hose fitting insert nipple male nipple

Thread:We can do metric, bspt, npt, jic, sae thread on customer's request.

Material: carbon steel, ss304, ss316, brass

Color: yellow, silver, bluewhite

Surface treatment: Cr+3, Cr+6 zinc plating, zn-ni plating.

Standard: GB/T 9065.3

We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.

We can provide OEM service and develop new products according to customer's drawings and samples.

1. Material: carbon steel, stainless steel, brass, etc.

2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated

3. Standard:SAE, DIN, ISO, BS.

4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.

Quick Details

Material: Carbon Steel, Carbon steel
Technics: Forged
Type: Coupling
Place of Origin: Zhejiang, China (Mainland)
Model Number: Fittings
Brand Name: YH
Connection: Male
Shape: Equal
Head Code: Round
Color: Golden, silver
Surface treatment: Cr+3, Cr+6 Zinc plated, Zn-Ni plated
Thread: various
Standard: GB/T 9065.3
Product: fitting connector
