Best Selling Eco-Friendly R9R Rubber Hoses

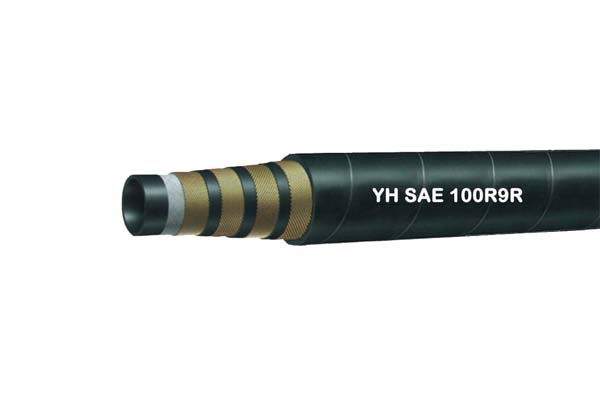

SAE 100R9R hoses are reinforced with four wire spiral of high resistant steel. SAE 100R9R hoses are produce with sizes from 1/2’’ to 2’’ popularly. And all types production of hydraulic rubber hoses are involved in YH daily work. We promise to offer customers with our best hoses but lower prices.

Details

Part no.: SAE 100R9R
Internal Hoses: Substratum of synthetic rubber resistant to oils(water)
Reinforcement: 4 wire spiral of high resistant steel
Cover: Black synthetic rubber resistant to abrasion, oils, fuels, ozone, atmospheric agents.
Working temperature: from -40℃ up to +125℃

Technical Data Table

名义直径 Nominal Diameter		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm		工作压力working pressure MPa	试验压力 Proof pressure MPa	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm
Min	Max	Min	Max	Min	Max	Min	Max	Max	试验压力 Proof pressure MPa	Min	最小弯曲 Min. bend Radius mm
12.5	1/2	15.5	13.5	20.3	21.2	23.8	25.4	41.5	83.0	166.0	180
16	5/8	12.3	16.7	23.4	24.6	27.7	29.3	39.0	78.0	156.0	225
19	3/4	18.6	19.8	27.4	28.8	31.2	32.8	35.0	70.0	140.0	280
25	1	25.0	26.4	34.8	35.8	38.5	40.9	31.0	62.0	124.0	355
31.5	1.1/4	31.4	33.0	42.4	44.0	46.3	48.7	28.0	56.0	112.0	460
38	1.1/2	37.7	39.3	48.7	50.3	53.3	54.7	26.0	52.0	104.0	560
51	2	50.4	52.0	62.2	63.8	65.8	68.2	21.0	42.0	84.0	710
