Stainless-Steel-Quick-Coupling

Details

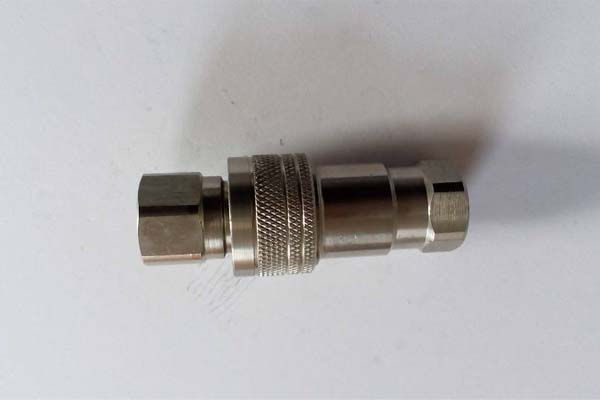

Part no.: 7241ASS(A Series Hydraulic Quick Couplings(Stainless Steel) )
Material: Carbon steel, stainless steel, brass, etc..
OEM service: available for samples or drawings provided.
MOQ: require no MOQ for stock products. We have kept a wide range of sizes for popular items required.

Package details

Technical Data Table

Thread type 1: BSP
Technical Data Table



Part no.



Thread

A

mm.

C

mm.

D

mm.

7241ASS-02PFG1/432.019.022.0
7241ASS-03PFG3/837.022.026.0
7241ASS-04PFG1/246.027.031.0
7241ASS-22PFM22X1.546.027.031.0
7241ASS-06PFG3/458.035.040.0
7241ASS-08PFG166.041.048.0
7241ASS-10PFG1.1/475.054.059.0
7241ASS-12PFG1.1/286.060.068.0
7241ASS-16PFG2100.077.084.0

Thread type 2: NPT
Technical Data Table

Part no.

Thread

A

in.

C

in.

D

in.

7241ASS-N02PFNPT1/41.270.750.87
7241ASS-N03PFNPT3/81.470.881.01
7241ASS-N04PFNPT1/21.821.061.23
7241ASS-U34PFUNF3/41.821.061.23
7241ASS-N06PFNPT3/42.291.381.59
7241ASS-N08PFNPT12.581.621.88
7241ASS-N10PFNPT1.1/42.952.122.32
7241ASS-N12PFNPT1.1/23.382.362.67
7241ASS-N16PFNPT23.933.033.30

Female Part Drawing

Thread type 1: BSP
Technical Data Table



Part no.



Thread

E

mm.

F

mm.

G

mm.

7241ASS-02SFG1/447.022.027.0
7241ASS-03SFG3/855.027.032.0
7241ASS-04SFG1/270.032.039.0
7241ASS-22SFM22X1.570.032.039.0
7241ASS-06SFG3/485.041.048.0
7241ASS-08SFG1104.048.054.0
7241ASS-10SFG1.1/4110.054.069.0
7241ASS-12SFG1.1/2128.060.082.0
7241ASS-16SFG2153.077.0100.0

Thread type 2: NPT
Technical Data Table



Part no.



Thread

E

in.

F

in.

G

in.

7241ASS-N02SFNPT1/41.850.881.08
7241ASS-N03SFNPT3/82.181.061.27
7241ASS-N04SFNPT1/22.751.251.52
7241ASS-U34SFUNF3/42.751.251.52
7241ASS-N06SFNPT3/43.361.621.9
7241ASS-N08SFNPT14.111.882.14
7241ASS-N10SFNPT1.1/44.332.122.71
7241ASS-N12SFNPT1.1/25.032.363.22
7241ASS-N16SFNPT26.023.033.93

FAQ

Q:What's the casting method for your camlock couplings?
A:Stainless steel camlock couplings are made by precision casting or investment casting.
Q:How can i know the material is corrrcct ang acceptable?
A:Material certificate (inspection certificate) is available on request.
Q:What thread you are manufacturing?
A:NPT thread and BSP thread.
Q:Can I add logo on the products?
A:Yes,please send us the details about your Logo.
Q:I cannot find the products Iwant on your site. Are you able to help me to locate it?
A:We are able o put every product we can do on this site. Telling us your requirement. we can send you the right camlock coupling and related products.
