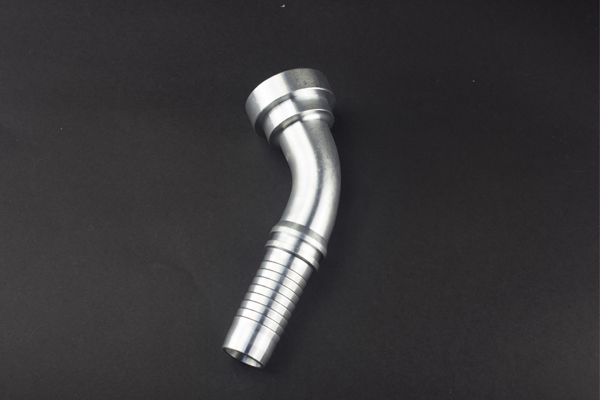

Spiral-Hose-Flange-Fitting

87642 fittings are 45 degrees elbow SAE flange 6000PSI used in one, two or spiral hoses. Complete sizes from 1/4’’ to 3’’ are manufactured in our factory for several years. Details are showed below for your reference. Please no hesitate to advise us with your comments or requirements.

Details


Material:Carbon Steel
Technics:Forged
Type:Flange, Spiral hose fitting
Place of Origin:Zhejiang, China (Mainland)
Model Number:87642
Brand Name:YH
Connection:Flange
Shape:Equal
Head Code:Square
COLOR:white
Gender:brake hose flange
material:carbon steel, brass, stainless steel
Application:Interlock hose fitting
standard:BSP,JIC,DIN,Metric
surface treatment:plated with white zinc or color
Main market:Russian, Ukraine, Italy, Gemany
Tolerance:0.01mm-0.02mm
Standard:EATON, PARKER

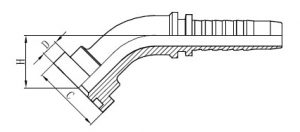

Technical Data Table


代号

PART NO.

法兰尺寸

FLANGE SIZE

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCDLH
87642-08-081/2"120831.823.97.924.7
87642-12-123/4"201241.331.78.931.8
87642-16-161"251647.6389.634
87642-20-201.1/4"32205443.610.439.4
87642-24-241.1/2"402463.550.812.745.5
87642-32-322"503279.466.512.752.7

FAQ


1. Do your company accept payment terms of L/C, D/P?
We have more than 20 different countries customers, they have many kinds of payment ways, in order to give the customers best service,we accept the multiple payment terms, such as FOB, CFR, CIF, L/C, D/P and multiple transfer types are available, such as T/T, Western Union, Money gram, Paypal and so on.
2. What about your production capacity?
We are one of the biggest OEM factory, we have more than 30 productional lines, top equipments and machines to assure our bulk quantity orders. Usually we can supply 300000meters within one month.
3. How long does my order take to be delivered?
Big orders by sea usually takes 20 days, if your request quantity is not very big, within 10 days you can get the goods in any corner of the world by air. So it generally depends on the quantity of your order and our storage.
4. Can you produce product with my own brand?
Yes, we have been offering OEM services since the beginning of our factory was built, so we got rich experience in this service. We can do the well knowed international brand for you.
5. What's the advantage of your products?
Our products have been certified by API and ISO quality management system. With over 15 years’ producing and exporting experience, our products have got a good reputation of “good quality and reasonable price”, sells far to Europe, America, Africa,South Asia and so on.
