R1AT-Hydraulic-Hose-Assembly

Details

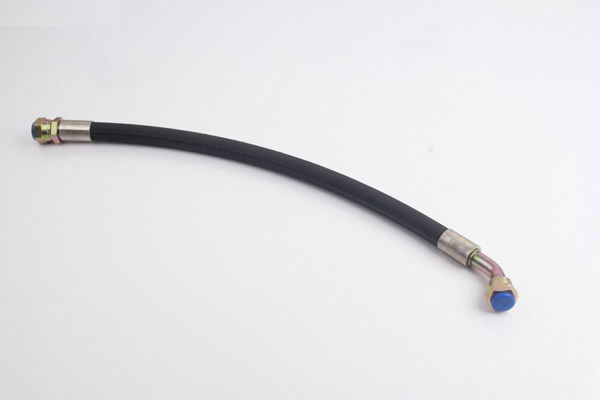

Part no.: YH-R1AT-20241(Hose: SAE 100R1AT; Fitting: 45°GB Metric Female Flat Seat)
Ferrule type: 00210(ferrule for two wire braided hose); 00110(ferrule for one wire braided hose)
Samples: less than 1pcs which is less than 30cm is free of charge for checking the quality
Components: one piece hydraulic hose, two ferrules, and two fittings
Types: hose assembly types are designed as customers’ requirements.

Technical Data Table

名义直径

Nominal

Diameter

内径

Inside  diameter mm

钢丝层直径

Reinforcement

Diameter mm

外径

Outside diameter mm

工作压力working pressure MPa试验压力

Proof pressure

MPa

爆破压力burst pressure

MPa

最小弯曲

Min. bend

Radius

mm

MinMaxMinMaxMinMaxMaxMaxmin
53/164.65.48.910.112.521.042.084.090
6.31/46.27.010.611.714.119.238.476.8100
85/167.78.512.113.315.717.535.070.0115
103/89.310.114.515.718.115.731.462.8125
12.51/212.313.517.519.021.514.028.056.0180
165/815.516.720.622.227.710.521.042.0205
193/418.619.824.626.228.68.717.434.8240
25125.026.432.534.136.67.014.028.0300
31.51.1/431.433.039.341.744.84.38.617.2420
381.1/237.739.345.648.052.03.57.014.0500
51250.452.058.761.965.92.65.210.3630

Product Feature

1.Materials: standard materials with material certificates, which can be carbon steel, stainless steel or brass, etc...
2.Machines:adopted 40 sets of advanced CNC machines, which makes our fittings with high precision.
3.Production Methods: appropriate production process, which ensures low scrap percentage and competitive prices.
4.Standards: strictly according to relevant international standards, which can be JIC,DIN,Metric,BSP,NPT,etc...
5.Inspection:procceded incoming check,site check and initial finished product inspection, for some 100% check before shiment, which makes our fittings free from impurities, burrs, or sharp edges, etc...
6.Package:applied long-time seaworthy plywood cases.
