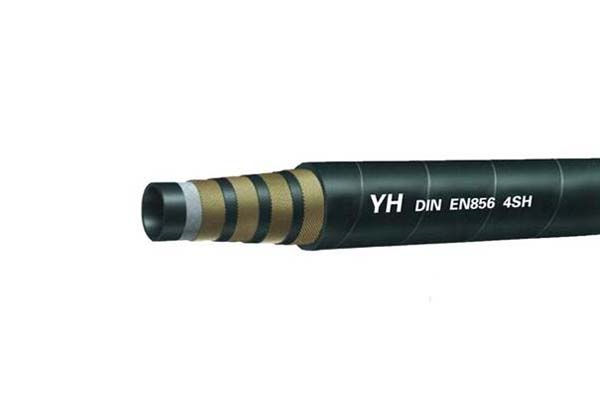

DIN EN865 SH is four wire extreme high pressure hydraulic hoses. 4SH hoses are suitable for hydraulic fluids hydraulic fluids on mineral oil and synthetic oil basis, oil-water-emulsions, water-glycol-liquids, vegetable and mineral oil based lubricants, cooling water, and compressed air.
Details
Part no.: DIN EN865 4SH
Long-lasting cover is well suited for mobile hydraulics
Black, oil resistant, synthetic rubber tube
Four spiral layers of high tensile steel wire reinforcement
Oil and abrasion resistant, black synthetic rubber cover
Temperature range: from -40℃ up to +125℃(at most)
No skiving required
Technical Data Table
| 名义直径 Nominal Diameter | 内径 Inside diameter mm | 钢丝层直径 Reinforcement Diameter mm | 外径 Outside diameter mm | 工作压力working pressure MPa | 试验压力 Proof pressure MPa | 爆破压力burst pressure MPa | 最小弯曲 Min. bend Radius mm | ||||
| Min | Max | Min | Max | Min | Max | Min | Max | Max | Min | ||
| 19 | 3/4 | 18.6 | 19.8 | 27.6 | 29.2 | 31.4 | 33.0 | 42.0 | 84.0 | 168.0 | 280 |
| 25 | 1 | 25.0 | 26.4 | 34.4 | 36.0 | 37.5 | 39.9 | 38.0 | 76.0 | 152.0 | 340 |
| 31 | 1.1/4 | 31.4 | 33.0 | 40.9 | 42.9 | 43.9 | 47.1 | 32.5 | 65.0 | 130.0 | 460 |
| 38 | 1.1/2 | 37.7 | 39.3 | 47.8 | 49.8 | 51.9 | 55.1 | 29.0 | 58.0 | 116.0 | 560 |
| 51 | 2 | 50.4 | 52.0 | 62.2 | 64.2 | 66.5 | 69.7 | 25.0 | 50.0 | 100.0 | 700 |
