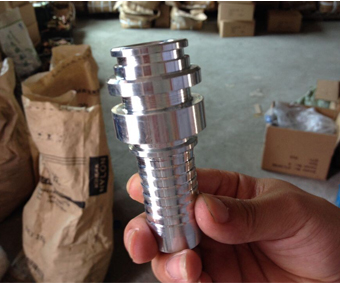

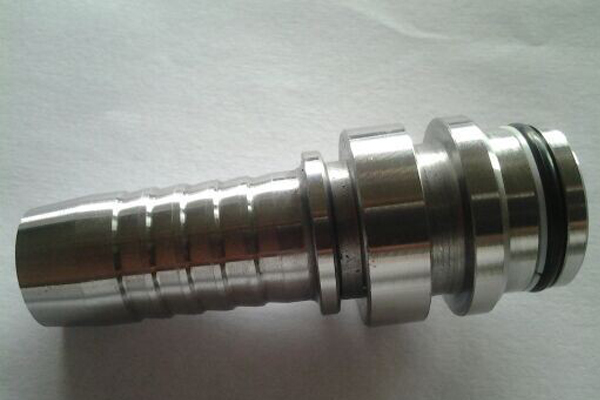

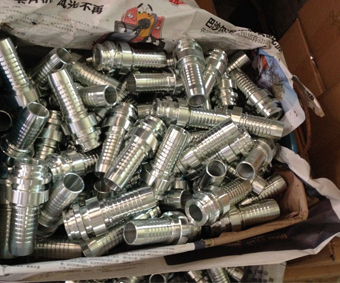

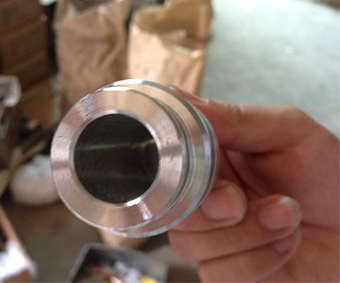

China supplier MT SAE Male female staple lock fittings

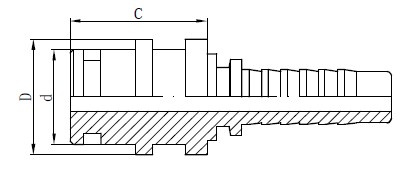

Technical Data Table

---

代号 PART NO.	胶管 HOSE BORE		尺  寸   DIMENSIONS
	公称内径DN	标 号 DASH	d	D	C
60011-04-04	6	04	11	16	25
60011-05-05	8	05	13	18	26
60011-06-06	10	06	15	18	26
60011-08-06	10	06	18	22	26
60011-08-08	12	08	18	22	26
60011-10-10	16	10	20	25	30
60011-12-12	20	12	24	28	31
60011-16-14	22	14	30	36	31
60011-16-16	25	16	30	36	31

1. Hydraulic Hose Fittings:

1). BSP male, female fitting, straight & elbow, nuts, ferrules

2). JIC male, female fitting, straight & elbow, nuts, ferrules

3). NPT male, female fitting, straight & elbow, nuts, ferrules

4). ORFS male, female fitting, straight & elbow, nuts, ferrules

5). SAE male, female fitting, straight & elbow, nuts, ferrules

6.) Metric male, female fitting, straight & elbow, nuts, ferrules

7). Reusable fittings

8). One-piece fittings

2. Hydraulic Adaptors:

1). BSP male, female adaptor, 3 ways tee 4 ways tee

2). JIC male, female adaptor, 3 ways tee 4 ways tee

3). NPT male, female adaptor, 3 ways tee 4 ways tee

4). ORFS male, female fitting, straight & elbow, nuts, ferrules

5). SAE male, female fitting, straight & elbow, nuts, ferrules

6.) Metric male, female fitting, straight & elbow, nuts, ferrules

3.Quick Release Couplings:

European / American / Austraulia type with NPT, BSP thread etc

4.Stainless Steel (316SS / 304SS) & Brass & aluminum fittings:

NPT,JIC,BSP etc threaded male and female fittings & adaptors for low & high pressure
