cnc manufacturing hydraulic orfs male female flat seat fittings

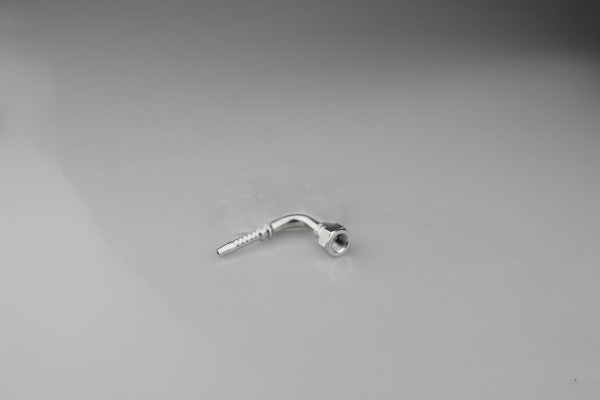

34291 hydraulic fittings are 90 degrees ORFS female flat seat and non-crimped types. 24291 fittings are crimped type for 34291 fittings. 34291 fittings are made from 45 carbon steel which is bought from official steel company to ensure good raw material quality. 34291 fittings are manufactured by CNC machines that can keep good tolerance and exact sizes demands.

Details

---

Part no.: 34291(90°ORFS Female Flat Seat; Non-crimped type)

Related items: 24291(crimped type, 34211(straight type), 34241(45 degrees elbow type)

Surface: Cr+3 zinc plated, nickel plated, chrome plated, etc.

Material: carbon steel, stainless steel, brass, alloy steel, etc.

Samples: we can provide less than 5pcs as samples for checking the quality

Technical Data Table

---

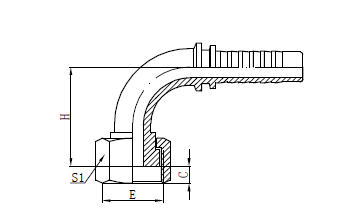

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S1	H
34291-04-04	9/16"x18	6	04	11	19	32.5
34291-06-06	11/16"x16	10	06	10	22	40
34291-10-08	1"x14	13	08	13.5	30	46
34291-12-08	1.3/16"x12	13	08	13	36	48
34291-12-10	1.3/16"x12	16	10	13	36	50
34291-10-10	1"x14	16	10	13.5	30	45
34291-12-12	1.3/16"x12	20	12	13	36	53.5
34291-16-12	1.7/16"x12	20	12	14	41	60.5
34291-16-16	1.7/16"x12	25	16	14	41	70
34291-24-24	2"x12	40	24	19	60	85.5

We are specialized in hydraulic hose fittings, ferrules, adaptors, quick release couplings, stainless steel fittings & brass fittings

1. Hydraulic Hose Fittings:

1). BSP male, female fitting, straight & elbow, nuts, ferrules

2). JIC male, female fitting, straight & elbow, nuts, ferrules

3). NPT male, female fitting, straight & elbow, nuts, ferrules

4). ORFS male, female fitting, straight & elbow, nuts, ferrules

5). SAE male, female fitting, straight & elbow, nuts, ferrules

6.) Metric male, female fitting, straight & elbow, nuts, ferrules

7). Reusable fittings

8). One-piece fittings

2. Hydraulic Adaptors:

1). BSP male, female adaptor, 3 ways tee 4 ways tee

2). JIC male, female adaptor, 3 ways tee 4 ways tee

3). NPT male, female adaptor, 3 ways tee 4 ways tee

4). ORFS male, female fitting, straight & elbow, nuts, ferrules

5). SAE male, female fitting, straight & elbow, nuts, ferrules

6.) Metric male, female fitting, straight & elbow, nuts, ferrules

3.Quick Release Couplings:

European / American / Austraulia type with NPT, BSP,etc thread.

4.Stainless Steel (316SS / 304SS) & Brass & aluminum fittings:

NPT,JIC,BSP etc threaded male and female fittings & adaptors for low & high pressure

---
