Low Price Factory Production Hose Assembly Hot Sale High Pressure Hydraulic Rubber Hose

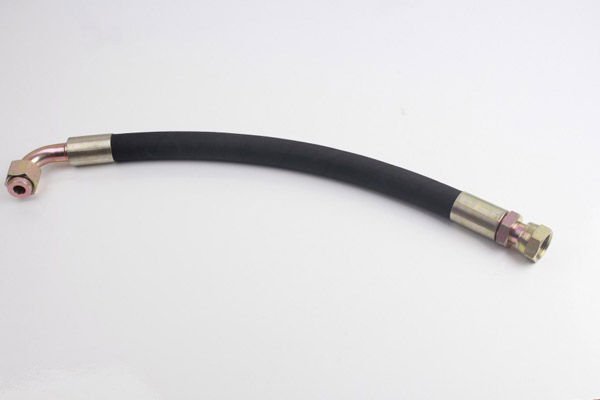

YH-4SP-22611D hose assemblies are composed with 4SP hoses, BSP female double hexagon fittings and ferrules are four wire hoses. YH Hydraulic use advanced crimping machines to ensure high precision and good appearance. Each assembly is packed with same length of plastic film to protect from collision in the delivery.

Details

Part no.: YH-4SP-22611D(Hose: DIN EN856 4SP; Fitting: BSP Female 60°Cone With Double Hexagon)
Ferrule type: 00400 ferrules are used in the assembly which is special for four wire braided hydraulic hose.
Assembly application: in the fields of agriculture, manufacturing, transportation, mining, construction, automotive equipments, etc.
Types: we can make hose assemblies to customers’ demands that are hose types, fitting types, length, etc.
Advantage: reasonable prices, high quality, good precision

Technical Data Table

名义直径 Nominal Diameter		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm		工作压力working pressure MPa	试验压力 Proof pressure MPa	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm
Min	Max	Min	Max	Min	Max	Min	Max	Max	试验压力 Proof pressure MPa	Min	最小弯曲 Min. bend Radius mm
12	1/2	15.5	13.5	19.4	21.0	23.8	25.4	41.5	83.0	166.0	230
16	5/8	12.3	16.7	23.0	24.6	27.4	29.0	35.0	70.0	140.0	250
19	3/4	18.6	19.8	27.4	29.0	31.4	33.0	35.0	70.0	140.0	300
25	1	25.0	26.4	34.5	36.1	38.5	40.9	28.0	56.0	112.0	340
31	1.1/4	31.4	33.0	45.0	47.0	49.2	52.4	21.0	42.0	184.0	460
38	1.1/2	37.7	39.3	51,4	53.4	55.6	58.8	18.5	37.0	74.0	560
51	2	50.4	52.0	64.3	66.3	68.2	71.4	16.5	33.0	66.0	660

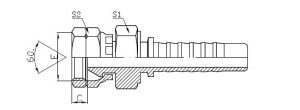

Fitting Drawing

Fitting Technical Data

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺寸 DIMENSIONS
代号 PART NO.	螺纹E THREAD E	公称内径DN	标号 DASH	C	S1	S2
22611D-04-04	G1/4"X19	6	04	5.5	19	19
22611D-06-06	G3/8"X19	10	06	6.5	22	22
22611D-08-08	G1/2"X14	12	08	8	27	27
22611D-12-12	G3/4"X14	20	12	11.5	32	32
22611D-16-16	G1"X11	25	16	11.5	41	41
22611D-20-20	G1 1/4"X11	32	20	12	50	50
22611D-24-24	G1 1/2"X11	40	24	13	55	55
22611D-32-32	G2"X11	50	32	16	70	70

Fair and Our service

1.We are in the field of hydraulic hose about 5 years .
2.We are a factory manufacturing hydraulic rubber hose ,best production capability ,best quality control, Best Service .
3.100% QC inspection Before Shippment.
4.customized the specification or drawing is aviailable, just according to your request.also we can provide OEM
5.our delivery time is normally after confirm payment 5-15 days.
6.if you have any problems ,we are welcome you to contact us and welcome you to visit our factory.
