Metric Female Multiseal L. T. Hydraulics Adapter of High Quality (20411C)

20111 fittings are metric female multi-seal types which are frequently manufactured in YH Hydraulic. 20111 types are widely used in hydraulic field and exported to Russia and Middle East mostly. Our fittings are of good quality and lower prices that can meet customers’ demands for higher quality widely. And we can provide OEM service with samples, drawings or requirements presented.

Details

---

Part no.: 20111(Metric Female Multiseal)

Sizes: we are providing a full range of specifications of 20111 fittings which are showed on technical table.

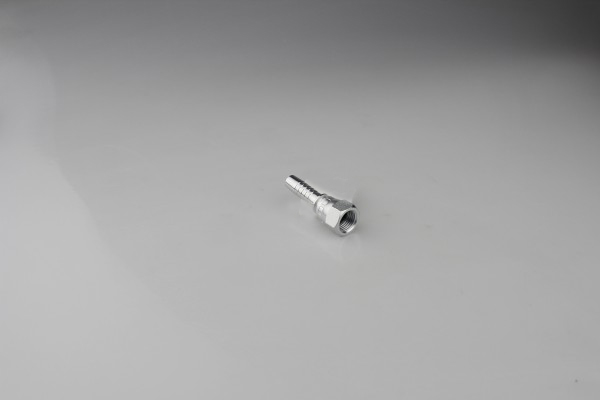

Image: image for 20111 fittings are only for reference. Please visit “Technical Data Table” to make sure 20111 fittings are your requirements.

Our advantage: Factory price; prompt delivery; quality ensured

MOQ: no limit for 20111 types.

Technical Data Table

---

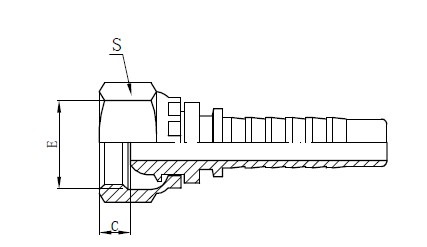

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸 DIMENSIONS
		公称内径 DN	标 号DASH	C	S
20111-12-02	M12X1.25	4	02	5	17
20111-14-04	M14X1.5	6	04	5	19
20111-16-05	M16X1.5	8	05	6	22
20111-18-06	M18X1.5	10	06	5.5	24
20111-22-08	M22X1.5	12	08	5	27
20111-27-10	M27X1.5	16	10	4.5	32
20111-30-12	M30X1.5	20	12	5.5	36
20111-36-14	M36X2	22	14	5.5	41
20111-39-16	M39X2	25	16	5.5	46
20111-45-20	M45X2	32	20	6.5	55
20111-52-24	M52X2	40	24	5.5	60

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	DIMENSIONS
		DN	DASH		A	C	S2
20411C-12-04	M12X1.5	6	4	6	19.5	3.5	17
20411C-14-04	M14X1.5	6	4	8	20.5	3.5	19
20411C-16-04	M16X1.5	6	4	10	21	3.5	22
20411C-16-05	M16X1.5	8	5	10	21	3.5	22
20411C-16-06	M16X1.5	10	6	10	21	3.5	22
20411C-18-06	M18X1.5	10	6	12	22.5	3	24
20411C-22-08	M22X1.5	12	8	15	24	4.5	27
20411C-30-12	M30X2	20	12	22	27	7	36
20411C-30-14	M30X2	22	14	22	27	7	36
20411C-36-16	M36X2	25	16	28	29	6.5	41
20411C-22-06T	M22X1.5	10	6	15	23.5	4.5	27
20411C-26-10T	M26X1.5	16	10	18	27	4	32
20411C-30-10T	M30X2	16	10	22	26.5	7	36
20411C-45-20T	M45X2	32	20	35	33	7	55
20411C-52-24T	M52X2	40	24	42	34	8	60

1. Swaged Metric Fittings	Mertic Flat Seal Fittings
	Metric Multiseal Fittings
	Metric 60°Cone Seal Fittings
	Metric 74°Cone Seal Fittings
	Metric 24°Cone O-RING Seal L..T Fittings
	Metric 24°Cone O-RING Seal H.T.Fittings
	Metric Standpipe Straight Fittings
	JIS Metric 60°Cone Seal Fitting
2. Swaged British Fittings	BSP O-RING Seal Fittings
	BSP Flat Seal Fittings
	BSP Multiseal Fittings
	BSP 60°Cone Seal Fittings
	BSPT Fittings
	JIS BSP 60°Cone Seal Fittings
3. Swaged American Fittings	SAE O-RING Seal Fittings
	ORFS Flat Seal Fittings
	NPSM 60°Cone Seal Fittings
	JIC 74°Cone Seal Fittings
	NPT Fittings SAE Flange L.T. Fittiings
	SAE Flange H.T.Fittings
4. Staplelok Fittings	Banjo Double connection
	interlock Hose Fittings
5. Ferrule	FERRULE for SAE100R1AT/ EN 853 1SN HOSE
	FERRULE for SAE100R1A EN 853 1ST HOSE
	FERRULE for SAE100R2AT/DIN20022 2SN HOSE
	FERRULE for SAE100R2A/EN 853 2SN HOSE
	FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC
	FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE
	FERRULE for 4SH,R12/32 HOSE
6. Metric Adapters	Metric Thread O-RING Face Seal Adapters
	Metric Thread Bite Type Tube Adapters
	JIS Metric Thread 60°Cone Adapters
	Metric Thread 74°Cone Flared Tube Adapters
7. British Adapters	BSP Thread 60°Cone Adapters
	JIS BSP Thread 60°Cone Adapters
	BSPT Thread Adapters
8. American Adapters	ORFS Adapters JIC 74°Cone Flared Tube Adapters
	NPT Thread Adapters

Quick Details

---

Type: Fittings, Fittings
Model Number: 20411C
Brand Name: YH
Place of Origin: Zhejiang, China (Mainland),
Model No.: 20411C
Certification:ISO9001:2008
Material:Carbon Steel
Color: Yellow/Silver
Finishing: Zinc Plated
Size:Customized
Customized: Accepted

---
