90 Degree One Piece Hose Crimped End Fitting, Flexible Charging Boss Hydraulic Swivel Air Hose Barbed Fittings Stainless Steel

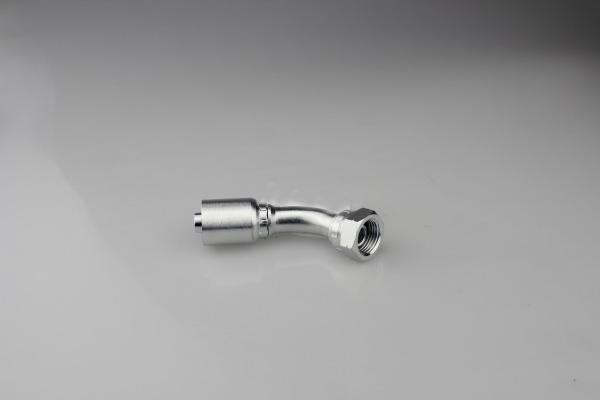

30542one piece fittings are 45°elbow metric female 24°cone with o-ring for one, two or four braided hydraulic hoses which are heavy types. Different types of one piece fittings are involved in our production daily. Many thread types and sizes can be your choose. And please visit our website or download catalog for detailed data.

Details

---

Part no.: 30542one piece(45°Metric Female 24°Cone H.T. With O-ring Four-Wire Integral Fitting)

Types: 30542 fittings with related ferrules crimped

Sizes: sizes showed on technical data table are standard ones in YH Hydraulic

Samples: less than 3pcs is free of charge for checking the quality

Delivery time: Less than 7 days for stock products

Stock condition: a wide variety of fittings are kept in our stock

Technical Data Table

---

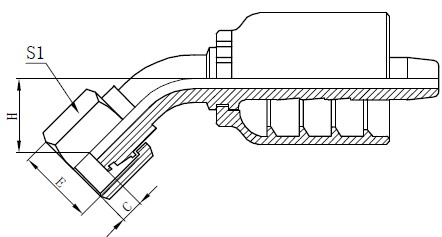

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		管子外径 TUBE O.D.	尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH		C	S1	H
30542-24-08one piece	M24X1.5	12	08	16	3	30	27
30542-30-10one piece	M30X2	16	10	20	3.5	36	31
30542-36-12one piece	M36X2	20	12	25	3	41	34
30542-42-16one piece	M42X2	25	16	30	5	50	42
30542-52-20one piece	M52X2	32	20	38	6.5	60	43
30542-52-24one piece	M52X2	40	24	38	6.5	60	45
