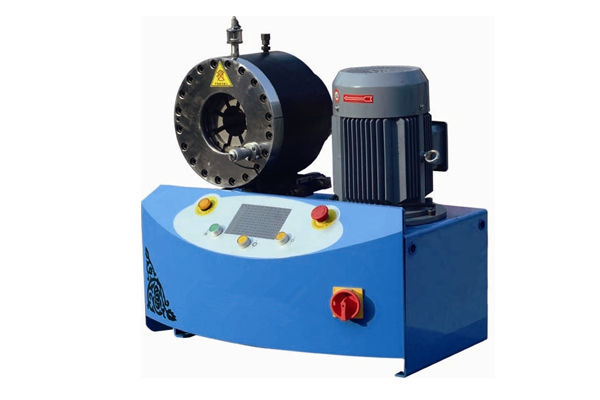

Hydraulic hose crimping machine YHHC-91H-1 is commonly involved in buckling processing for high pressure rubber hose assembly in the mechanical engineering. YHHC-91H-1 crimping machine can crimp hydraulic hoses such as R1AT hose, R2AT hose, 4SP hose, 4SH etc. Ferrules at the ends of hose assembly are of smooth surface when crimped.
Part no.: YHHC-91H-1
Function: manual and semi-automatic
Has the function of self-lubrication
Added die base resin gasket to protect the machine from debris dropping
Delivery time: within 10 days after receiving the deposit
Delivery term: FOB(Ningbo), FCA, CIF(customer required port).
Technical Data Table
|Crimper range||1/8’’-2’’ 4SP|
|Standard voltage & motor||380V/4KW|
|Opening without dies||Φ122mm|
|Optional voltage & motor||220V/2.2KW|
|No. Of standard die set||10 sets|
It is mainly used for buckling processing of high pressure rubber pipe assembly in mechanical engineering. It can also be used for buckling two-way bends, especially large bends and irregular shape bends.
This machine features small and portable appearance, a heavy force , low noise and easy operations. The buckling amount can be precisely adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
