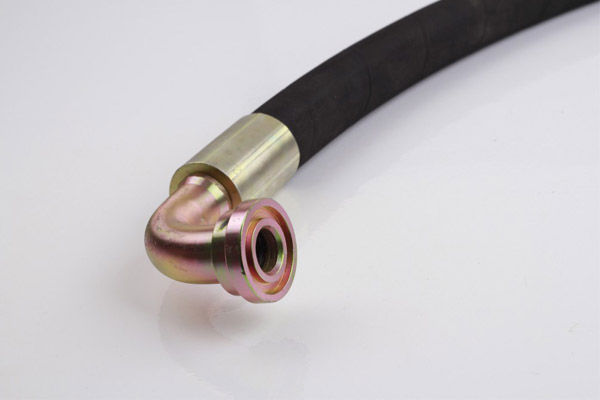

Hydraulic Rubber Hose Assembly 1sn 2sn 4sp 4sh With Fitting Ferrule

YH-4SH-87992 hose assemblies are composed with DIN EN856 4SH, 90°SAE flange 9000PSI flange fittings spiral hoses, and ferrules for spiral hoses. Complete items of hoses assemblies can be found in YH Hydraulic. We offer an unbeatable combination of quality, selection and good price that our competitors can’t begin to match. Please go ahead to contact us for any deeper requirements.

Details

Part no.: YH-4SH-87992(Hose: DIN EN856 4SH; Fitting: 90°SAE Flange 9000PSI For Spiral Hose)
Ferrule types: 00400(ferrules for spiral hose)
Brand: YH; for other brands, please contact us with details.
Stock condition: we have kept a lot of items of hoses, fittings and ferrules for a fast delivery.
Payment term: 100% TT in advance; 30% TT in advance, 70% TT before shipment; others can be discussed.

Technical Data Table

名义直径 Nominal Diameter		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm		工作压力working pressure MPa	试验压力 Proof pressure MPa	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm
Min	Max	Min	Max	Min	Max	Min	Max	Max	试验压力 Proof pressure MPa	Min	最小弯曲 Min. bend Radius mm
19	3/4	18.6	19.8	27.6	29.2	31.4	33.0	42.0	84.0	168.0	280
25	1	25.0	26.4	34.4	36.0	37.5	39.9	38.0	76.0	152.0	340
31	1.1/4	31.4	33.0	40.9	42.9	43.9	47.1	32.5	65.0	130.0	460
38	1.1/2	37.7	39.3	47.8	49.8	51.9	55.1	29.0	58.0	116.0	560
51	2	50.4	52.0	62.2	64.2	66.5	69.7	25.0	50.0	100.0	700

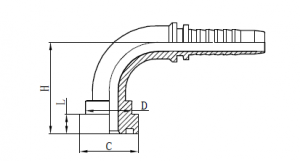

Fitting Drawing

代号 PART NO.	法兰尺寸 FLANGE SIZE	胶管 HOSE BORE		尺寸 DIMENSIONS
代号 PART NO.	法兰尺寸 FLANGE SIZE	公称内径DN	标号 DASH	C	D	L	H
87992-08-08	1/2"	12	08	31.8	23.9	14.3	40.5
87992-12-12	3/4"	20	12	41.3	31.7	14.3	69.3
87992-16-16	1"	25	16	47.6	38	14.3	80.7
87992-20-20	1.1/4"	32	20	54	43.6	14.3	91.8
87992-24-24	1.1/2"	40	24	63.5	50.8	14.3	104.6
87992-32-32	2"	50	32	79.4	66.5	14.3	124
