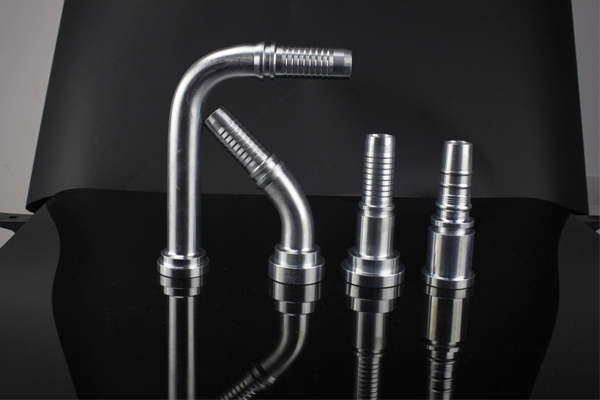

Long Service Life Long Drop Flange Fitting

87342-16-16H is special because of its long drop. H is instead of height which can be designed by customers. And two sizes in technical data are booked mostly. It is made from carbon steel in YH Hydraulic. But its material can be stainless steel like SS316. Dimensions are precise after manufactured by CNC machines.

Details

---

Part no.: 87342-16-16H(45 degrees SAE Flange 3000PSI For Spiral Hose, Flange size is 1’’)
Material: Carbon Steel #45; Steel; Stainless Steel
Procession Equipment: CNC machines; Raw material cutting equipment; Tube elbowing machines
Long Drop Sizes: two sizes are showed in technical data table, but this type is mainly for customer designed specifications
Smooth Finish: Controlled by CNC machines

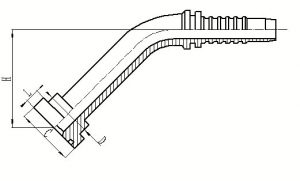

Technical Data Table

---
