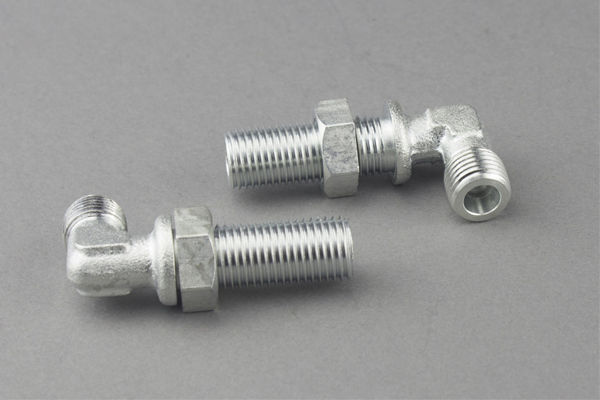

JIC-Male-Bulkhead

Details

Part no.: 6J9(90°JIC Male 74°Cone Bulkhead)
Colors: white(white zinc plated); yellow(yellow zinc plated); silver(chrome plated)
Sizes: from 04 to 20 are standard sizes manufactured in YH Hydraulic.
Advantages: competitive prices; reliable quality; strong supply ability; no leaking; etc.
Currency: RMB, USD, EURO, others
Delivery port: Ningbo, Shanghai, Guangzhou, others

Technical Data Table

代号

PART NO.

螺纹尺寸 DIMENSIONS
THREAD EABS1
6J9-04U7/16"X202940.414
6J9-06U9/16"X18294614
6J9-08U3/4"X163353.519
6J9-10U7/8"X143760.722
6J9-12U1.1/16"X124367.827
6J9-16U1.5/16"X12527133
6J9-20U1.5/8"X125979.244
备注：如需带锁母订货，请在代号后加”LN”,如：6J9-08LN

Remark: In case if you are interested to order the adapter with lock nut, please insert suffix”LN”after our part no. for example 6J9-08LN.
