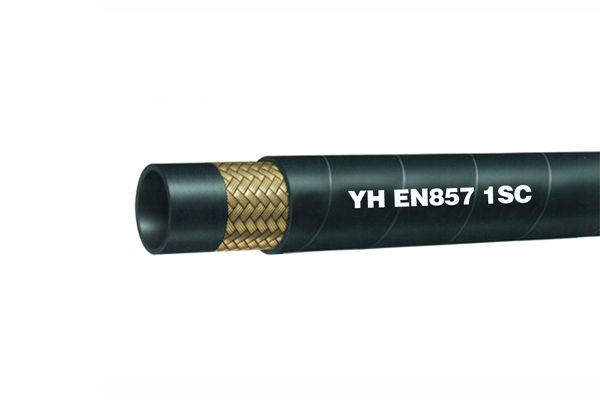

DIN EN857 1SC Standard Wrapped Hydraulic Rubber High Temperature Hoses

EN857 1SC is covered with environment resistant synthetic rubber and one high tensile steel braided. Hydraulic hoses are main products selling in YH factory. Specifications are designed according to EN857 standard. The brand is YH but we can offer customer brand hoses.

Details

Part no.: EN857 1SC
Reinforcement: One high tensile steel braid
Tube: Oil Resistant synthetic rubber
Cover: Environment resistant synthetic rubber
Continuous Service Temperature Range: -40°F/+212°F; -40 ℃/+100℃
Recommended Fluids: Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.

Technical Data Table

名义直径 Nominal Diameter		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm	工作压力working pressure MPa	试验压力 Proof pressure MPa Min	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm Min
Min	Max	Min	Max	Min	Max	Max	Max	试验压力 Proof pressure MPa Min	Max	最小弯曲 Min. bend Radius mm Min
6	1/4	6.1	6.9	9.6	10.8	13.5	22.5	6	1/4	6.1
8	5/16	7.7	8.5	10.9	12.1	14.5	21.5	8	5/16	7.7
10	3/8	9.3	10.1	12.7	14.5	16.9	18.0	10	3/8	9.3
12	1/2	12.3	13.5	15.9	18.1	20.4	16.0	12	1/2	12.3
16	5/8	15.5	16.7	19.8	21.0	23.0	13.0	16	5/8	15.5
19	3/4	18.6	19.8	23.2	24.4	26.7	10.5	19	3/4	18.6
25	1	25.0	26.4	30.7	31.9	34.9	8.8	25	1	25.0
