Germany-Standard-Hydraulic-Hoses

Details

Part no.: DIN EN853 1SN

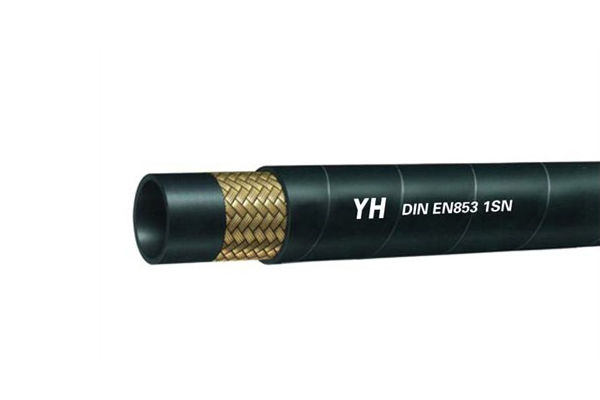

Construction: this type hose consists of an inner tube of oil-resistant rubber, a single wire braid reinforcement, and an oil- and weather-resistant rubber cover
Surface: black color; marking with description of hose; company logo
Currency: USD; EURO; RMB; others
Delivery: Within a week for stock products; about two weeks for new produced order

Technical Data Table

名义直径

Nominal

Diameter

内径

Inside  diameter mm

钢丝层直径

Reinforcement

Diameter mm

外径

Outside diameter mm

工作压力working pressure MPa试验压力

Proof pressure

MPa

爆破压力burst pressure

MPa

最小弯曲

Min. bend

Radius

mm

MinMaxMinMaxMinMaxMinMaxMaxmin
53/164.65.49.010.011.112.525.050.0100.090
6.31/46.27.010.611.612.714.122.545.090.0100
85/167.78.512.113.314.315.721.543.085.0115
103/89.310.114.515.716.718.118.036.072.0125
12.51/215.513.517.519.119.821.416.032.064.0180
165/812.316.720.622.222.924.513.026.052.0205
193/418.619.824.626.226.928.510.521.042.0240
25125.026.432.534.134.636.68.817.535.0300
31.51.1/431.433.039.341.742.244.86.312.532.0s420
381.1/237.739.345.648.049.152.15.010.020.0500
51250.452.058.761.762.565.54.08.016.0630
