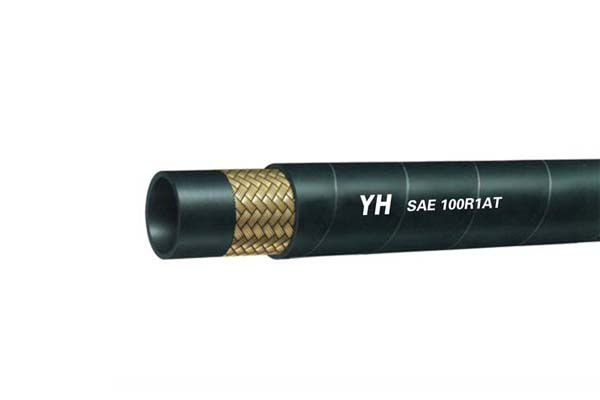

SAE 100R1AT is one of popular hose items produced in YH Hydraulic daily. We manufacture SAE and DIN steel wire and spiral hoses for national and international selling. We have owned a good reputation not only because of quality hoses but more reasonable prices compared with many famous brands such as Manuli, Semperflex, Alfagomma,etc.
Details
Part no.: SAE 100R1AT
Hose tube: Oil resistant synthetic rubber
Reinforcement: one high tensile steel wire braid
Hose cover: Abrasion and weather resistant synthetic rubber
Suitable Temperature: -40℃ to +100℃
Marking: hose part no., size and working pressure are marked on hose body(customer brand is available)
Technical Data Table
| 名义直径 Nominal Diameter | 内径 Inside diameter mm | 钢丝层直径 Reinforcement Diameter mm | 外径 Outside diameter mm | 工作压力working pressure MPa | 试验压力 Proof pressure MPa | 爆破压力burst pressure MPa | 最小弯曲 Min. bend Radius mm | |||
| Min | Max | Min | Max | Min | Max | Max | Max | min | ||
| 5 | 3/16 | 4.6 | 5.4 | 8.9 | 10.1 | 12.5 | 21.0 | 42.0 | 84.0 | 90 |
| 6.3 | 1/4 | 6.2 | 7.0 | 10.6 | 11.7 | 14.1 | 19.2 | 38.4 | 76.8 | 100 |
| 8 | 5/16 | 7.7 | 8.5 | 12.1 | 13.3 | 15.7 | 17.5 | 35.0 | 70.0 | 115 |
| 10 | 3/8 | 9.3 | 10.1 | 14.5 | 15.7 | 18.1 | 15.7 | 31.4 | 62.8 | 125 |
| 12.5 | 1/2 | 12.3 | 13.5 | 17.5 | 19.0 | 21.5 | 14.0 | 28.0 | 56.0 | 180 |
| 16 | 5/8 | 15.5 | 16.7 | 20.6 | 22.2 | 27.7 | 10.5 | 21.0 | 42.0 | 205 |
| 19 | 3/4 | 18.6 | 19.8 | 24.6 | 26.2 | 28.6 | 8.7 | 17.4 | 34.8 | 240 |
| 25 | 1 | 25.0 | 26.4 | 32.5 | 34.1 | 36.6 | 7.0 | 14.0 | 28.0 | 300 |
| 31.5 | 1.1/4 | 31.4 | 33.0 | 39.3 | 41.7 | 44.8 | 4.3 | 8.6 | 17.2 | 420 |
| 38 | 1.1/2 | 37.7 | 39.3 | 45.6 | 48.0 | 52.0 | 3.5 | 7.0 | 14.0 | 500 |
| 51 | 2 | 50.4 | 52.0 | 58.7 | 61.9 | 65.9 | 2.6 | 5.2 | 10.3 | 630 |
