Mild-Steel-Hose-Collar

We are professional hydraulic ferrules(03310) manufacturer in Ningbo, China. Item 03310 is a kind of non-skive ferrules for SAE 100R1AT or R2AT Hose. Plain carbon steel is material mostly used in our factory. Complete sizes for this type are involved in our daily production from 3/16’’ to 2’’.

Details


Part no.: 03310
Usage: Equipped with fittings for SAE 100R1AT or R2AT hose
Surface: zinc-plated; customers’ demands
Processing equipment: CNC machines; Automatic punch
Stock products: available.

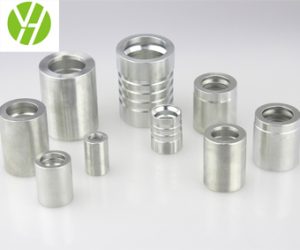

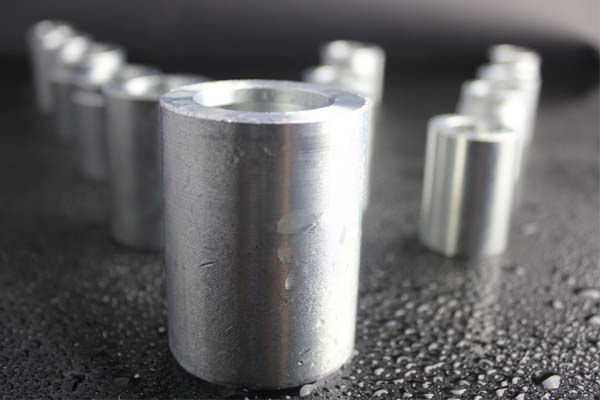

1. Pictures for Mild Steel Hose Collar, hose ferrules, hose sleeves, hose collars

2. Different models of hose ferrules for your choice
Ferrules for SAE 100R1AT, DIN EN853 1SN: 00110 and 00100
Ferrules for SAE 100R2AT, DIN EN853 2SN: 00210 and 00200
Ferrules for SAE 100R1AT, DIN EN853 1SN, SAE 100R2AT, DIN EN853 2SN: 03310
Ferrules for DIN EN856 4SP, DIN EN865 4SH, SAE 100R12: 00400
Ferrules for SAE 100R7/R8 hoses: 00018
(See details on YH catalog)
3. Raw Material
20 carbon steel 316 stainless steel 304 stainless steel
4. Flow chat
YH Hydraulic has rich experiences in Mild Steel Hose Collar production. We are able to supply different kinds of hydraulic hose ferrules, such as ferrules for R1AT 1SN hoses, ferrules for R2AT 2SN hoses, ferrules for 4SP 4SH R12 hoses, etc. Also we can produce sizes with customers’ requirements. It is a perfect idea to crimp good ferrules with fittings to make hose assemblies without leaking.
Raw material cutting--Raw material forging--CNC machines fashioning--Marking part no. on ferrule body--Galvanization--Packing
5. Coating Options
White zinc plated Yellow zinc plated Cr3 plated

6. Delivery
The ferrules are possible to be packed in wooden cases after putting in cartons with plastic firm wrapped.







Technical Data Table


代号

PART NO.

胶管 HOSE BORE尺寸 DIMENSIONS
公称内径 DN标 号 DASHDL
03310-035031924
03310-046042330.2
03310-058052431.3
03310-0610062632
03310-0812082934
03310-1016103337.5
03310-1220123743
03310-1625164651
03310-2032205957
03310-2440246760
03310-3250328075
