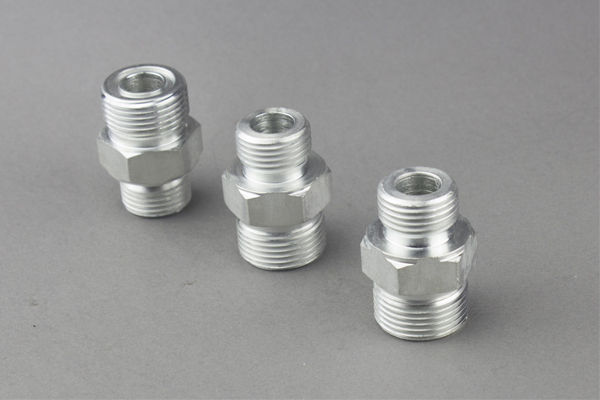

JIS-To-NPT-Adapter

1SN adapter fittings are JIS GAS male 30 degrees cone to NPT male thread types. 1SN fittings are manufactured with sizes from 1/4’’ to 2’’ which can meet most demands from customers. We are providing good quality products to national market and to the world. We are providing after-sales service and problem solutions.

Details


Part no.: 1SN(JIS GAS Male 60°Cone to NPT Male)
Sizes: from 04 to 32 are popularly manufactured in YH Hydraulic. Other sizes are acceptable if drawings, samples or request in details provided
Material: carbon steel 45(commonly used); stainless steel or brass(available)
Production standard: Winner same as Eaton
Brand: YH; but on products body no brand lettered except it is required
Samples: less than 5pcs are free of charge for checking quality

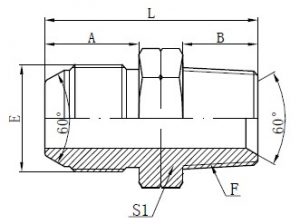

Technical Data Table


代号

PART NO.

螺纹THREAD尺寸 DIMENSIONS
 E FABS1L
1SN-04G1/4"X19Z1/4"X1815141735
1SN-04-02G1/4"X19Z1/8"X2715101731
1SN-04-06G1/4"X19Z3/8"X1815141935
1SN-04-08G1/4"X19Z1/2"X1415192241
1SN-06G3/8"X19Z3/8"X1816141936
1SN-06-04G3/8"X19Z1/4"X1816141936
1SN-06-08G3/8"X19Z1/2"X1416192243
1SN-08G1/2"X14Z1/2"X1419192246
1SN-08-04G1/2"X14Z1/4"X1819142241
1SN-08-06G1/2"X14Z3/8"X1819142241
1SN-08-12G1/2"X14Z3/4"X141919.52748.5
1SN-12G3/4"X14Z3/4"X142319.53052
1SN-12-08G3/4"X14Z1/2"X1423193052
1SN-12-16G3/4"X14Z1"X11.523243658
1SN-16G1"X11Z1"X11.525243660
1SN-16-12G1"X11Z3/4"X142519.53655.5
1SN-20G1.1/4"X11Z1.1/4"X11.529254666
1SN-24G1.1/2"X11Z1.1/2"X11.530255068
1SN-32G2"X11Z2"X11.535297081
