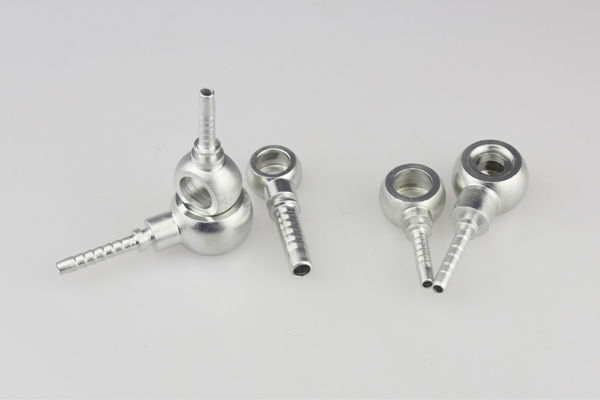

Metric Banjo Hose Fitting

Details

Part no.: 70011(Metric Banjo DIN7622)
Sizes: From M8 to M33 are popularly produced
Prices: YH will offer best quality products with lowest prices as we can.
Delivery time: re-produced products needs 25 days for one order; as discussed; stock products needs 5 days.
Samples: less than 5pcs is free of charged for checking quality.

Product Description

1. Size: M6, M8, M10, M12, M14, M16, M18.......
2. Usage: hydraulic oil hose, fule pipe, steel pipe, high pressure hose, rubber hose
3. Type: one tail
4. Advantage: high pressure, low pressure,high temperature
5.We have been in this business for over 10 years,provide hydraulic hose fiting with competitive price and reliable quality.
6.It's a important point that our company is a real factory.
7.If you are interested in any products,please free feel to contact me.

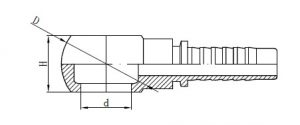

Technical Data Table

代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHdDH
70011-08-04M8X160482013
70011-10-04M10X1604102213
70011-12-04M12X1.5604122012
70011-12-05M12X1.5805122012
70011-14-04M14X1.5604142414
70011-14-05M14X1.5805142414
70011-14-06M14X1.51006142414
70011-14-08M14X1.51208142414
70011-16-06M16X1.51006162816
70011-16-08M16X1.51208162816
70011-18-06M18X1.51006183220
70011-18-08M18X1.51208183220
70011-18-10M18X1.51610183220
70011-20-08M20X1.51208203622
70011-20-10M20X1.51610203622
70011-22-08M22X1.51208223825
70011-22-10M22X1.51610223825
70011-22-12M22X1.52212223825
70011-26-12M26X1.52212264630
70011-27-12M27X1.52212275236
70011-30-12M30X1.52212305436
70011-30-16M30X1.52516305436
70011-33-16M33X1.52516336036

FAQ

How to order
1.If you are interested in our products ,pls tell us which type and quantity you need .
2.We will quote for you according to the requirement .
3.When you confirm ,perform invoice will be send you.
4.We will produce ASAP when received your deposit .
5.Deliver the products when finish producing .
Extra service
1.Sample order is available.
2.OEM accepted ,quantity according to the goods.
3.Print text or logo on the surface of products.
Guarantee
We promise use the best material and exquisite craft.
Payment
1.We accept T/T, Western Union, L/C.
2.30% deposit and 70% before delivery .
3.We will deliver the products only when we received all payment.
Shipment
1.Sample order via express.
2.Formal order via sea transportation.
3.We accept deliver products according to your requirement .
After sale service
Follow status up time by time until the products arrival ,and try our best to solve any problems you mentioned.
