BSP-Hydraulic-Adapters

Details

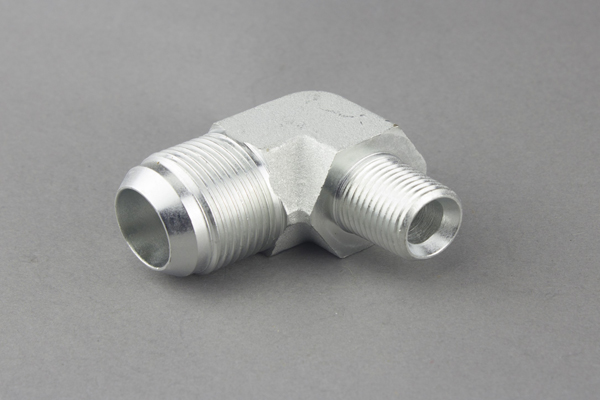

Part no.: 2B9(thread type: 90 degrees BSP male 60 degrees seat with BSP female 60 degrees cone)
Sizes: provided on technical data table which are standard ones; contact our sales for other sizes
Processing: from material quality control to finished products packing in order
Color: White; Yellow; Silver(common ones)
Delivery time: according to items and quantity required in earliest time

Technical Data Table


代号

PART NO.

螺纹THREAD尺寸 DIMENSIONS
 E FACS1S2
2B9-02G1/8"X28G1/8"X2819.85.51114
2B9-04G1/4"X19G1/4"X19295.51419
2B9-04-06G1/4"X19G3/8"X19306.51722
2B9-06G3/8"X19G3/8"X19306.51722
2B9-06-04G3/8"X19G1/4"X19305.51719
2B9-08G1/2"X14G1/2"X143782227
2B9-08-06G1/2"X14G3/8"X19376.52222
2B9-10G5/8"X14G5/8"X143710.52230
2B9-10-08G5/8"X14G1/2"X143782227
2B9-12G3/4"X14G3/4"X144311.52732
2B9-16G1"X11G1"X114711.53341
2B9-20G1.1/4"X11G1.1/4"X1159124450
2B9-24G1.1/2"X11G1.1/2"X1161135055
2B9-32G2"X11G2"X1166166570

Product Information


Head Code
Hexagon
Shape
Equal
Connection
ferrules
Brand Name
YH
Model Number
HY-ME
Place of Origin
China (Mainland)
China (Mainland)
Zhejiang
Type
Elbow
Technics
Forged
Material
Stainless Steel
Name
stainless steel 90 degree elbow connector
Connection
male thread compression elbow
Working Pressure
3000PSI male elbow
Certificate
ISO9001:2015
Delivery Time
5-30 days
Warranty Period
18 months after shipment
Material
ss304,ss316
MOQ
5 pcs
Thread
NPT,BSPP,BSPT elbow
Size
1/8"-1" male elbow

Shipment&Payment


We will help customers to book ship,buy insurance,and any other export service,like third part inspection , product certification ,
certiticate of invoice , certificate of embassy ,help to do customs clearcance and some other servces as per customer's requirements.
Shipping Method: by sea,by air, by express,by truck
By sea: LCL,FCL
By Air: at least 45 kgs per unit,if the total weight is no more than 45kgs,for example,30kgs,the air freight will be charged as per 45 kgs.
By Express: DHL,UPS,TNT,FEDEX,CHINA POST,SF express.

Customs Clearcance
Before the products arrive in customer's distination port,we will provide bill of lading,commercial invoice,packing list,certificate of origin and other related documents for customers.

After-Sales Service
The warranty period is 18 months after shipment,during the warranty period,if the products have any problems when using,we will provide guide service,if the products are damaged or any other quality problems,we will promise to fix them,the customers need to undertake the air freight from customers' place to China,and we will undertake the air freight from China to customers' place.
