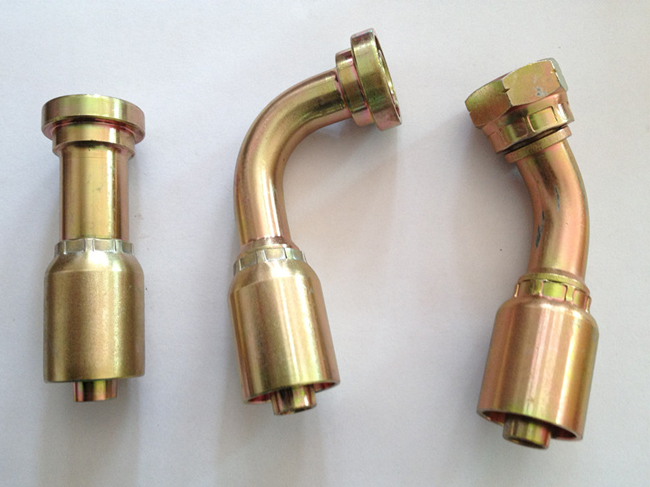

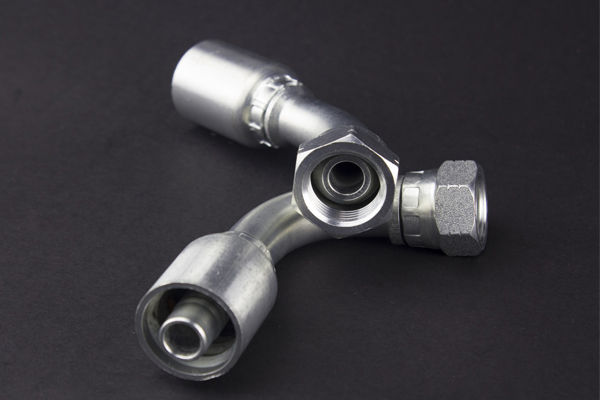

Item 20141 one piece fitting is 45 degrees GB metric female multi-seal integral fitting. It consists of 20141 fitting and relevant ferrule which are crimped together. Standard sizes showed on technical data table are regularly produced in YH Hydraulic. These fittings come in material of carbon steel, mild steel, stainless steel, etc.

Details


Material:Carbon Steel
Technics:Forged
Type:Flange
Place of Origin:Zhejiang, China (Mainland)
Model Number:20141
Brand Name:YH
Connection:Female
Shape:Equal
Head Code:Square
Application:Water/Oil/Gas
Standard:JIC
Size:1/2' ~ 6'
Certificate:ISO9001:2008
Surface treatment:zinc , Chrome , nickel plated
Color:white /Yellow zinc plated
special service:OEM as your drawings

Technical Data Table


       代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS1S2H
20141-14-04one pieceM14X1.56044171715.3
20141-18-06one pieceM18X1.510064.5221919.3
20141-22-08one pieceM22X1.512085272221
20141-27-10one pieceM27X1.516104.5322725
20141-30-12one pieceM30X1.520124363229
20141-36-16one pieceM36X225165413835
20141-39-16one pieceM39X225165463835
