Details


Part no.: 6C(Metric Male 24°Light Type Bulkhead)
Size range: from M12 to M52; For bigger or smaller ones, please advise our sales.
Type: With or without cutting ring and nuts are available for selling.
Quality: Highly precision manufactured; good packed; best quality of material(carbon steel)
Standard: Winner(same as Eaton); other standard products need part no.s to check out with ours.
Package: cartons with plastic cover; wooden case with plastic cover

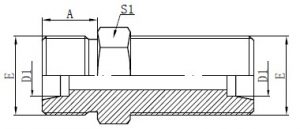

Technical Data Table


代号

PART NO.

螺纹管子外径尺寸 DIMENSIONS
THREAD E TUBE O.D. D1AS1
6C-12M12X1.561112
6C-14M14X1.581314
6C-16M16X1.51013.517
6C-18M18X1.51213.519
6C-22M22X1.5151424
6C-26M26X1.5181427
6C-30M30X2221832
6C-33M33X2251836
6C-45M45X2351946
6C-52M52X2421955

About hydraulic fitting

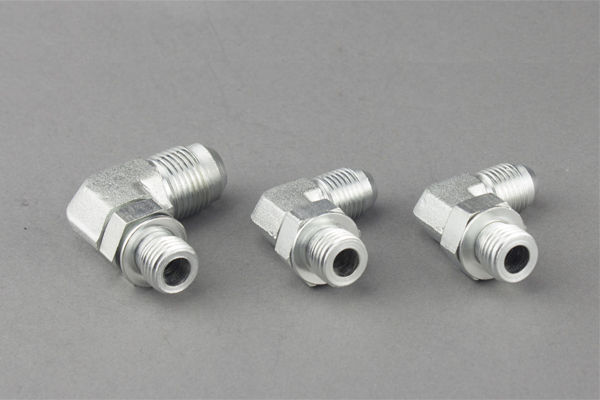

-- Higher quality Hex Head metric male bulkhead elbow pipe connectors
1.Perfect surface finish,smoothness without burrs and impurities
2.High precision according to standard. make specific fittings
3.Superior quality and competitive price
4.Samples in small quantity can be free for you
5.the professional manufacturer of the fittings
6.Widely used in various environment

Producting Process


 1. material preparation





      5.zinc plating



 2. instrument lathe processing



      6.checking every fittings



 3. CNC machine processing



      7.packing



 4. remove burrs and impurities



      8.delivering goods

Our advantages


1. Our main products include three main types: hydraulic joins, hose assemblies and check valves.
2. We have already made a comprehensive inspection of products, higher quality and various products.
3. We strive to be your strategic partner with comprehensive, timely and fixed-location service.
