Aeroquip Hydraulic Hose Sae R2at Wire Braided High Pressure Hydraulic Hose Assembly

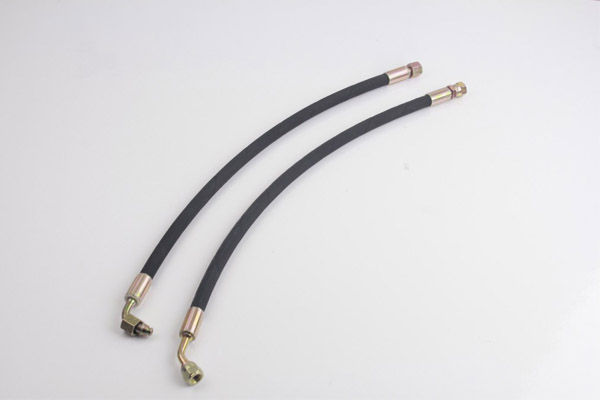

YH-1SN-26791 hose assemblies are composed with DIN EN853 1SN hose, JIC female fittings and related ferrule types. YH is offering a comprehensive line of hydraulic hose assembly. Different hose types and sizes are kept in stock for fast crimping and delivery. Hose assembly is welcomed among customers because of best quality and reasonable prices.

Details

Part no.: YH-1SN-26791(Hose: DIN EN853 1SN; Fitting: 90°JIC Female 74°Cone Seat)
Ferrule type: 00210(ferrule for two wire braided hose); 03310(ferrule for one or two wire braided hose)
Construction: this type hose consists of an inner tube of oil-resistant rubber, a single wire braid reinforcement, and an oil- and weather-resistant rubber cover
Surface: black color; marking with description of hose; company logo
Currency: USD, EURO, RMB, others
Delivery port: Ningbo; Shanghai; Guangzhou

Hose Technical Data

名义直径 Nominal Diameter		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm		工作压力working pressure MPa	试验压力 Proof pressure MPa	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm
Min	Max	Min	Max	Min	Max	Min	Max	Max	试验压力 Proof pressure MPa	min	最小弯曲 Min. bend Radius mm
5	3/16	4.6	5.4	9.0	10.0	11.1	12.5	25.0	50.0	100.0	90
6.3	1/4	6.2	7.0	10.6	11.6	12.7	14.1	22.5	45.0	90.0	100
8	5/16	7.7	8.5	12.1	13.3	14.3	15.7	21.5	43.0	85.0	115
10	3/8	9.3	10.1	14.5	15.7	16.7	18.1	18.0	36.0	72.0	125
12.5	1/2	15.5	13.5	17.5	19.1	19.8	21.4	16.0	32.0	64.0	180
16	5/8	12.3	16.7	20.6	22.2	22.9	24.5	13.0	26.0	52.0	205
19	3/4	18.6	19.8	24.6	26.2	26.9	28.5	10.5	21.0	42.0	240
25	1	25.0	26.4	32.5	34.1	34.6	36.6	8.8	17.5	35.0	300
31.5	1.1/4	31.4	33.0	39.3	41.7	42.2	44.8	6.3	12.5	32.0s	420
38	1.1/2	37.7	39.3	45.6	48.0	49.1	52.1	5.0	10.0	20.0	500
51	2	50.4	52.0	58.7	61.7	62.5	65.5	4.0	8.0	16.0	630

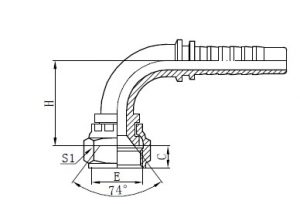

Fitting Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺寸 DIMENSIONS
代号 PART NO.	螺纹E THREAD E	公称内径DN	标号 DASH	C	S1	H
26791-04-04	7/16"X20	6	04	8.5	17	30
26791-05-04	1/2"X20	6	04	9.5	19	31.5
26791-05-05	1/2"X20	8	05	9.5	19	34.5
26791-06-04	9/16"X18	6	04	10	19	31.5
26791-06-05	9/16"X18	8	05	10	19	34.3
26791-06-06	9/16"X18	10	06	10	19	36
26791-08-06	3/4"X16	10	06	11	24	38.4
26791-08-08	3/4"X16	12	08	11	24	44.5
26791-10-06	7/8"X14	10	06	11	27	39.9
26791-10-08	7/8"X18	12	08	11	27	45
26791-10-10	7/8"X18	16	10	11	27	50
26791-12-08	1.1/16"X12	12	08	13.5	32	46
26791-12-10	1.1/16"X12	16	10	13.5	32	51.5
26791-12-12	1.1/16"X12	20	12	13.5	32	57.6
26791-14-12	1.3/16"X12	20	12	14.5	36	58
26791-16-12	1.5/16"X12	20	12	14.5	41	59.5
26791-16-14	1.5/16"X12	22	14	14.5	41	62
26791-16-16	1.5/16"X12	25	16	14.5	41	71.6
26791-20-16	1.5/8"X12	25	16	15.5	50	73
26791-20-20	1.5/8"X12	32	20	15.5	50	82
26791-24-20	1.7/8"X12	32	20	18.5	55	82
26791-24-24	1.7/8"X12	40	24	18.5	55	93.4
26791-32-32	2.1/2"X12	50	32	24.5	75	118.9
