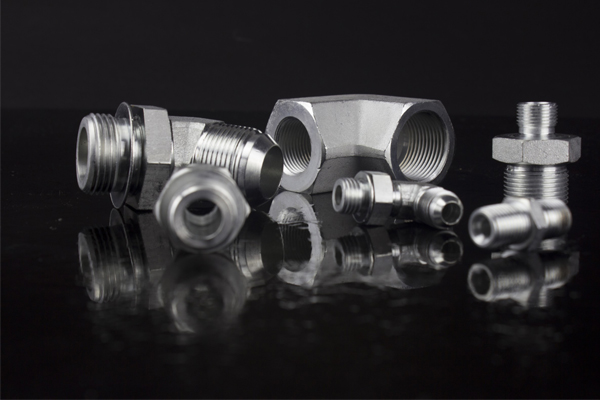

BSP-Female-Elbow-Adapter

Details


Part no.: 3B9(90°BSP Female 60°Cone)
Sizes: from G1/8’’ to G2’’ are available in our factory
Brand: YH; production standard is Winner same as Eaton
Application: Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc.
Testing: a small amount will be put into testing before whole order is delivered.

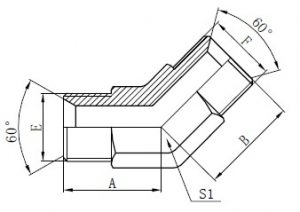

Technical Data Table


代号

PART NO.

螺纹 E尺寸 DIMENSIONS
THREAD ECS1S2
3B9-02G1/8"X285.51114
3B9-04G1/4"X195.51119
3B9-06G3/8"X196.51722
3B9-08G1/2"X1481927
3B9-10G5/8"X1410.52230
3B9-12G3/4"X1411.52732
3B9-16G1"X1111.53341
3B9-20G1.1/4"X11124450
3B9-24G1.1/2"X11135055
3B9-32G2"X11166570

Our Services


Fast shipping,Three days of sampling,seven days of prossing
Factory direct: very competitive price with good quality
Soon reply: anytime you enquiry, we will reply it at the first time
Different kinds of finish available.
Perfect packing: solid, without lost and damage

FAQ


Why customer concern us?
1)Cost reduction across a wide range of products.
2)No risk, production parts are based on spec or sample approval.
3)Non-standard or Customized products for you only.
4)Professional and highly motivated staffs.
5)More than ten years of production experience.
How about payment?
1)We accept T/T,L/C and CNY.
2)30% deposit and 70% before delivery .
3)We will deliver the products only when we received all payment.
How about shipment?
1)Sample order via express.
2)Formal order via sea transportation.
