Hydraulic-Assembly-Spares

Details

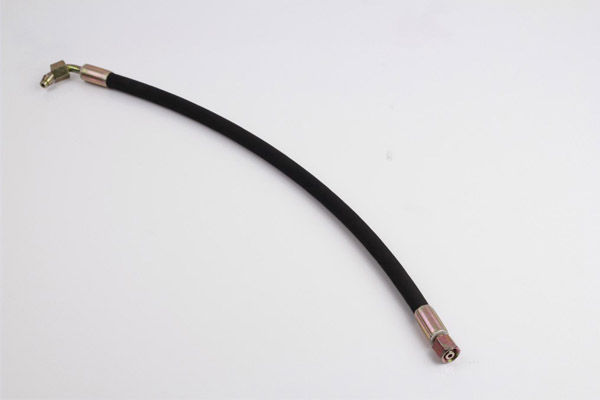

Part no.: YH-R2AT-30511(Hose: SAE 100R2AT; Fittings: Metric Female 24°Cone H.T. With O-ring DIN3853 Non-crimped type)
Ferrule types: 00210(ferrule for two wire braided hose); 03310(ferrules for R1AT hose and R2AT hose)
Assembly types: we can make hose assemblies to customers’ requirements.
Delivery time: less than 15 days for stock products(hoses and fittings are in stock)
Samples: one piece less than 0.2cm is free of charge for checking the quality.
Contact us

Technical Data Table

名义直径

Nominal

Diameter

内径

Inside  diameter mm

钢丝层直径

Reinforcement

Diameter mm

外径

Outside diameter mm

工作压力working pressure MPa试验压力

Proof pressure

MPa a

爆破压力burst pressure

MPa

最小弯曲

Min. bend

Radius

mm

MinMaxMinMaxMinMaxMaxMaxMin
53/164.65.410.611.714.135.070.0140.090
6.31/46.27.012.113.315.735.070.0140.0100
85/167.78.513.714.917.329.759.4118.8115
103/89.310.116.117.319.728.056.0112.0125
12.51/215.513.519.020.623.124.549.098.0180
165/812.316.722.223.826.319.238.476.8205
193/418.619.826.227.830.215.731.462.8240
25125.026.434.135.738.914.028.056.0300
31.51.1/431.433.043.245.649.611.322.645.2420
381.1/237.739.349.652.056.08.717.434.8500
51250.452.062.364.768.67.815.531.0630

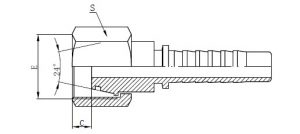

Fitting Drawing



Fitting Technical Data

代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE管子外径

TUBE.O.D

尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS
30511-14-04M14x1.56046217
30511-16-04M16x1.56048219
30511-18-04M18x1.560410222
30511-18-05M18x1.580510222
30511-20-05M20x1.580512324
30511-20-06M20X1.5100612324
30511-22-06M22X1.5100614327
30511-24-08M24X1.5120816330
30511-30-10M30X21610203.436
30511-30-12M30X22012203.536
30511-36-12M36X2201225341
30511-36-14M362221425341
30511-36-16M36X2251625341
30511-42-16M42X2251630550
30511-52-20M52X23220386.560
30511-52-24M52X24024386.560

FAQ

1. Are you a manufacturer or trading company?
We are a professional hydraulic hose fittings manufacturer with ten years' experience.We have done business with our customers well.
2. What is payment method?
For samples: T/T, western union.
For orders: T/T or L/C.
3. Do you offer free samples?
We can provide free samples and you should pay the freight. After you place an order, we will give back the freight.
4. Do you offer OEM service and can you product as our drawings?
Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawings.
5. Do you accept our design on boxes?
Yes. We accept custom design on boxes.
6. What's your delivery time?
Generally, we will arrange shipment with 30 days after receiving the deposit. If urgent, we can also meet your requirement.
7. Is your price higher than other companies?
Since we have been a professional manufacturer for 15 years, we can control our quality and costs well. So our prices are very competitive. And we dedicate to establishing long-term and friendly relationships with all the customers.
8. How do you control the quality?
We will arrange sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to the confirmed sample. We will also guarantee the accuracy of packaging and send you shipping sample. Welcome to our factory to inspect.
