SAE-Standard-Hoses

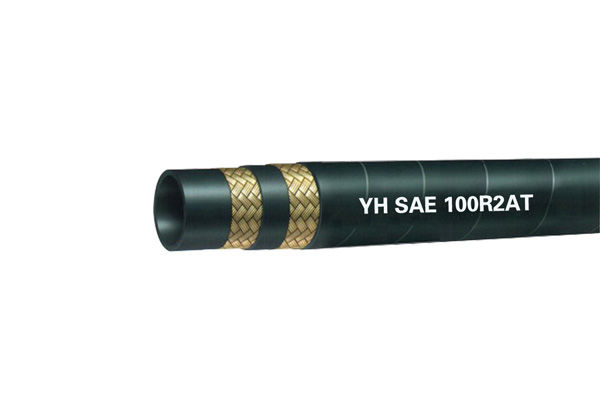

SAE 100R2AT hydraulic hoses are two steel wires braided. Sizes from 3/16’’ to 2’’ are widely used in hose assemblies with their fixed length required. Inside diameters and working pressures are designed to international standards. Hose specifications are tested before package. We can provide hose testing report whenever needed.

Details

Part no.: SAE 100R2AT
Features: Good compression resistance; High degree airproof; long lifespan; oil resistance
Normal work under the range of -40℃ to +120 ℃ temperature
This type is suitable for various equipments of hydraulic, pneumatic, oil, lubricating and other machinery parts
Currency: USD(common); for others, please contact sales
Payment term: 30% T/T in advance; 70% T/T before shipment(common way); welcome discuss for other terms

Technical Data Table

名义直径

Nominal

Diameter

内径

Inside  diameter mm

钢丝层直径

Reinforcement

Diameter mm

外径

Outside diameter mm

工作压力working pressure MPa试验压力

Proof pressure

MPa a

爆破压力burst pressure

MPa

最小弯曲

Min. bend

Radius

mm

MinMaxMinMaxMinMaxMaxMaxMin
53/164.65.410.611.714.135.070.0140.090
6.31/46.27.012.113.315.735.070.0140.0100
85/167.78.513.714.917.329.759.4118.8115
103/89.310.116.117.319.728.056.0112.0125
12.51/215.513.519.020.623.124.549.098.0180
165/812.316.722.223.826.319.238.476.8205
193/418.619.826.227.830.215.731.462.8240
25125.026.434.135.738.914.028.056.0300
31.51.1/431.433.043.245.649.611.322.645.2420
381.1/237.739.349.652.056.08.717.434.8500
51250.452.062.364.768.67.815.531.0630

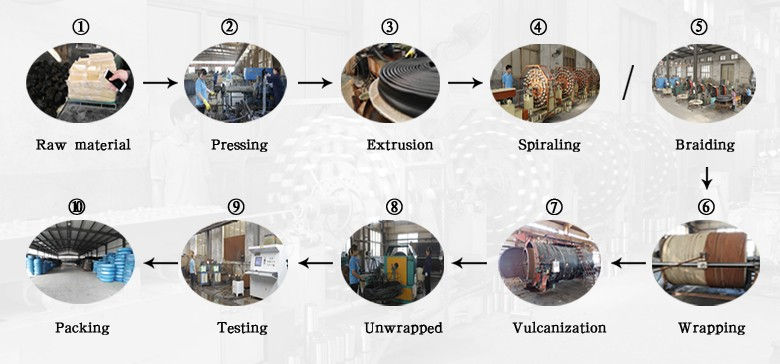

Production Process

Our Service

1.OEM order will be accepted.
2.Free sample will be supplied to you.
3.Well-trained and experienced staff will answer your questions.
4.Your inquiry related to our products will be replied within 24 hours.
5.Welcome to visit our factory for further understanding to our products and factory.
