Hydraulic Hose Assemblies

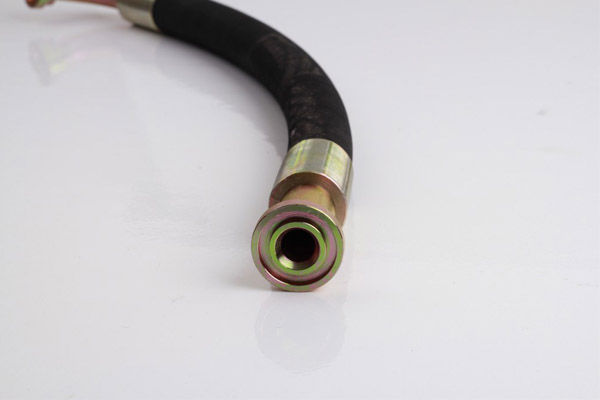

YH-4SP-87613 hose assemblies are composed with DIN EN856 4SP hose, SAE flange 6000PSI fittings for interlock, and interlock ferrules. Sizes details are showed below on technical data tables. Hose assembly types are designed by customers that can be made as different demands from the machine connections.

Details

Part no.: YH-4SP-87613(Hose: DIN EN856 4SP; Fitting: SAE Flange 6000PSI For Interlock)
Ferrule type: 00601(Interlock ferrule for R13 strengthen hose); 00605(Interlock ferrule for R13 strengthen hose)
Application: suitable for transmit hydraulic fluid such as alcohol, oil hydraulic pressure, fuel, lubricants, emulsion, hydrocarbons, etc.
MOQ: 20PCS for each item
Delivery port: Ningbo, Shanghai, Guangzhou , etc.
Delivery time: less than 7 days for stock products; less than 25 days for one order

Technical Data Table



名义直径

Nominal

Diameter

内径

Inside  diameter mm

钢丝层直径

Reinforcement

Diameter mm

外径

Outside diameter mm

工作压力working pressure MPa试验压力

Proof pressure

MPa

爆破压力burst pressure

MPa

最小弯曲

Min. bend

Radius

mm

MinMaxMinMaxMinMaxMinMaxMaxMin
121/215.513.519.421.023.825.441.583.0166.0230
165/812.316.723.024.627.429.035.070.0140.0250
193/418.619.827.429.031.433.035.070.0140.0300
25125.026.434.536.138.540.928.056.0112.0340
311.1/431.433.045.047.049.252.421.042.0184.0460
381.1/237.739.351,453.455.658.818.537.074.0560
51250.452.064.366.368.271.416.533.066.0660

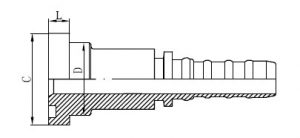

Fitting Technical Data

  代号

PART NO.

法兰尺寸

FLANGE SIZE

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCDL
87613-08-081/2"120831.823.97.9
87613-12-123/4"201241.331.78.9
87613-16-161"251647.6389.6
87613-20-201.1/4"32205443.610.4
87613-24-241.1/2"402463.550.812.7
87613-32-322"503279.466.512.7
